5" HD Color Touchscreen: Proprietary anti-shake algorithm ensures ultra-responsive control and crystal-clear visuals.
10-Roller Pump Head: Significantly reduces fluid fluctuation for smooth flow; custom high-strength polymer extend service life.
Supports four operating modes: Flow Rate Mode, Timed&Volume, Time&Speed, and Volume&Speed. Multi-channel and multi-mode support, with multi-group recipe storage for complex scenarios.
High-performance main control chip with mode-specific algorithms for unmatched stability and precision.
0.001 rpm Resolution: Custom high-microstep motor with optimized drive logic for delicate and precise micro-volume control.
Spring-Loaded Mechanism: Infinitely adjustable tubing gaps to maximize tubing longevity and dosing accuracy.
Optional leak detection sensor with a pre-programmed leak response procedure to protect equipment safety.
Technical Parameter
Flow rate resolution
0.001uL/min
Speed range
0.01-150rpm
Operation method
Touch screen
Flow rate range
0.02uL/min(0.13*0.86)-48.379mL/min(3*1)
Temperature
0-40℃
Power-off memory
Retains pre-power-loss data and parameters upon re-energization
Communication interface
RS232/RS485
Back suction angel
0-360°
Power supply
AC100-240V/100W
Speed resolution
0.01rpm
Common modes
Up to 10 common modes can be saved
External control signals
Passive switch signal: such as a foot pedal switch Active switch signal: compatible with 5–24 V DC input
Relative humidity
<80%
Motor type
Stepper motor
Output interface
Outputs the motor running status and rotation direction (open-collector output)
IP
IP31
Pump Head Parameter
Model
Rollers number
Speed
Channel Number
Tubing
Flow rate(μL/min-mL/min)
Tubing maximum pressure (Mpa)
Continuous
Intermittent
LabSmart
10 rollers
0.01-150rpm
4 Channel
1×1
0.503-7.549
0.1
0.1
2×1
1.835-27.519
2.4×0.8
2.542-38.130
3×1
3.226-48.379
0.13×0.86
0.02-0.289
0.19×0.86
0.03-0.439
0.25×0.86
0.051-0.759
0.51×0.86
0.134-1.999
0.89×0.86
0.298-4.470
1.14×0.86
0.611-9.159
1.42×0.86
1.250-18.750
1.52×0.86
1.44-21.599
2.06×0.86
1.974-29.599
2.79×0.86
2.858-42.859

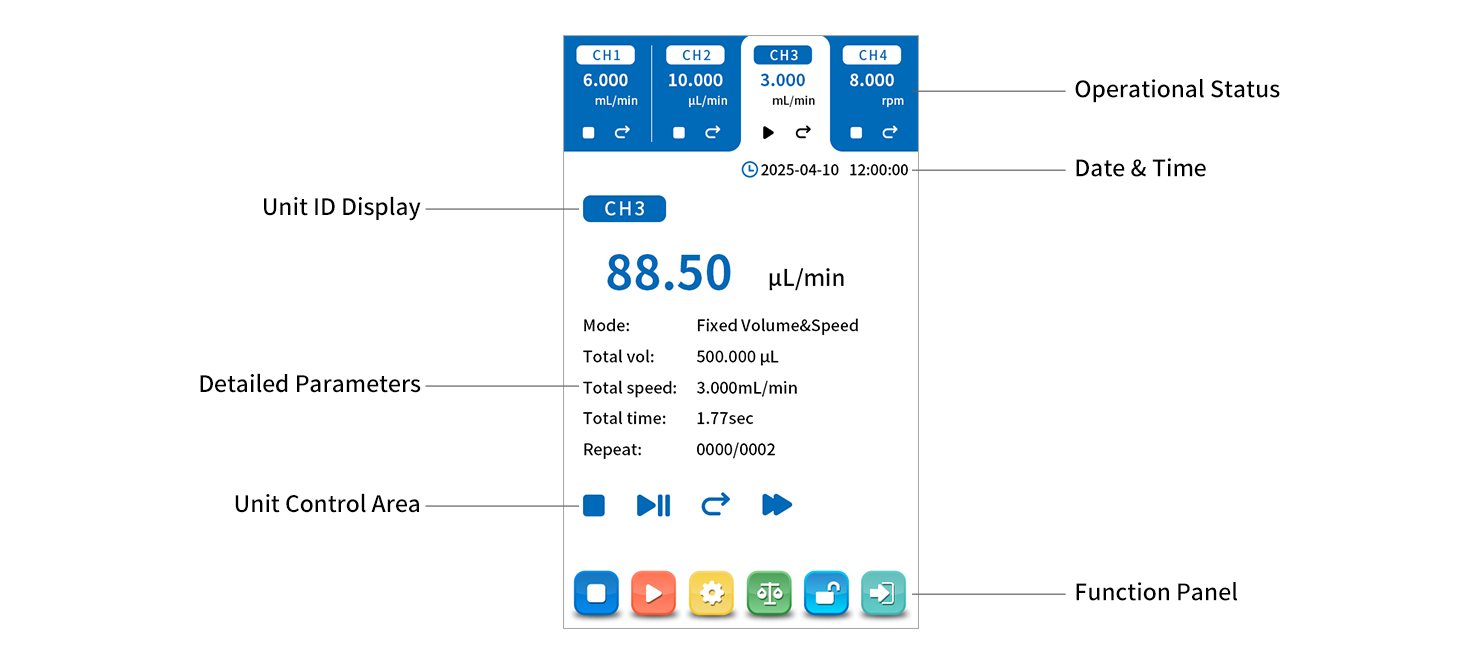

OSD

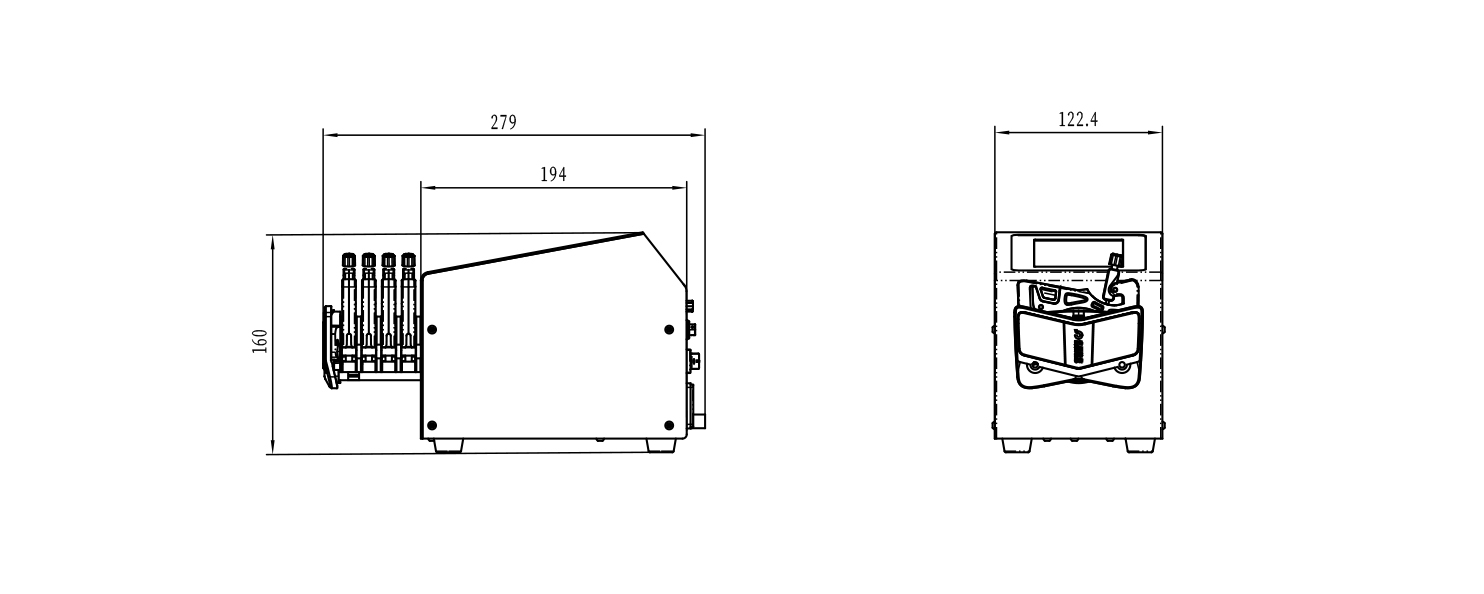

Dimension（Unit：mm）
