  3. High Pressure Pump Head GY15
OEM-GYB203/204/205
    Speed range：0.1-600rpm
    Flow range：0.0855-513mL/min
Optional pump head：
GY15
Online consultation
Download

Product Introduction

  • Maximum pressure up to 0.8 MPa with stable output.
  • Quick and convenient tubing replacement.
  • Precision-machined for high performance and long service life.
  • Customizable tubing end performance testing.
  • Easy-to-clean surface.
  • Designed for surgical cooling applications such as radiofrequency and microwave ablation.

Technical Parameter

Speed range 0.1-600rpm
Flow rate range 0.0855-513mL/min
Control method Control of start/stop and direction reversal via passive switch signal or active switch signal (3.3V–5V)
Control signal logic Run on opto-coupler ON / Run on opto-coupler OFF (Configurable via host computer software)
Operating mode Fixed speed mode / External analog input mode (Configurable via PC software)
Motor type Integrated Closed-loop stepper motor
Output signal Open-collector output
Speed control method OEM-GYB203: External analog speed control 4-20mA
OEM-GYB204: External analog speed control 0-5V
OEM-GYB205: External analog speed control 0-10V
Operating power supply DC24V-DC36V (Recommended DC36V), ≥100W
Operating environment 0-40℃, ＜80%RH, non-condensing

Product lctroduction


Model Housing material Tube clamp material Tubing (Speed: 0-600rpm)
Flow rate range(mL/min)		 Weight
(kg)
Tubing No. IDxWT (mm)
GY15

Aluminum alloy

 Stainless steel 14# 1.6x1.6 0-153 0.95
19# 2.4x1.6 0-306
16# 3.1x1.6 0-513

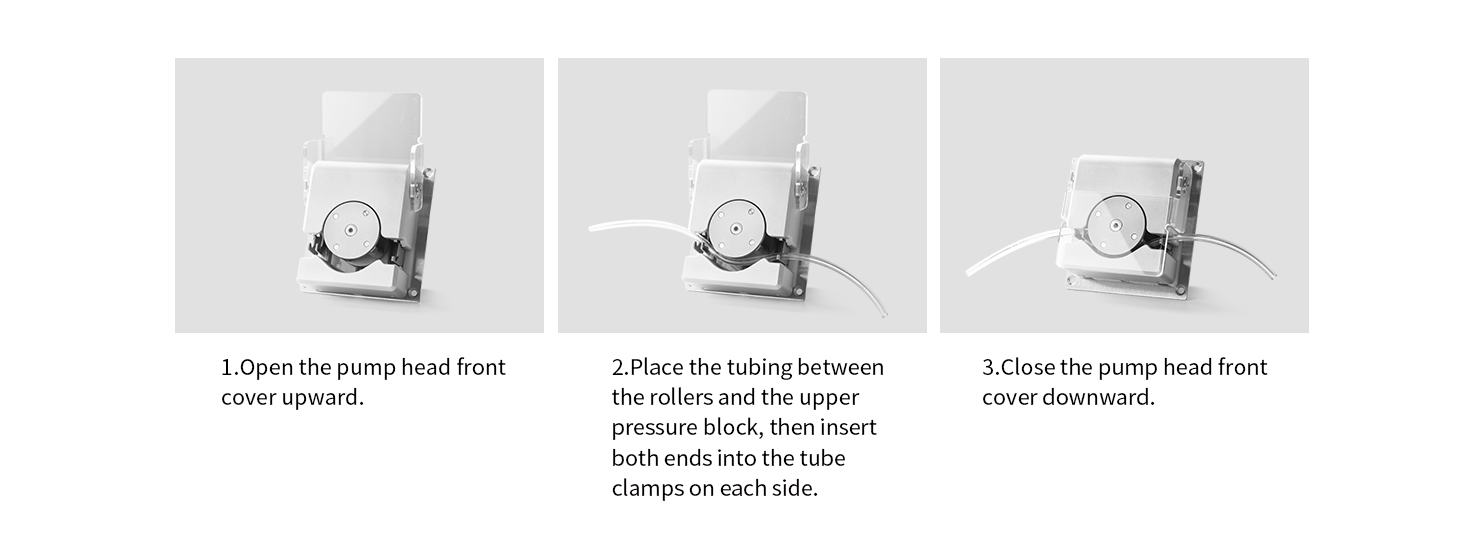

Tubing installation Procedure

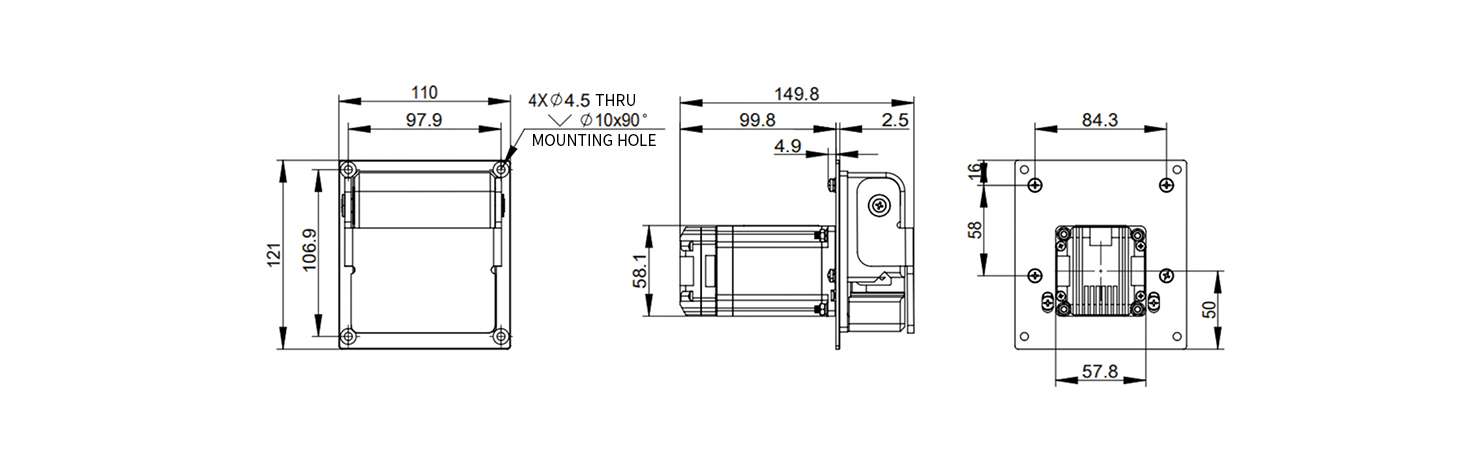

Dimension（Unit：mm）
