EXP600-1/EasyPump
    Speed range:180-600 rpm
    Flow range:9.54-3100mL/min
Optional pump head:
EasyPump
Online consultation
Download

Product Introduction

  • Safe explosion proof, suitable for sites where have electric hidden danger.
  • Stepless speed regulation, reversible.
  • Stable flow rate, high torque and low noise, suitable for various pump head and tubing.
  • Can mount 2 pcs pump heads to increase flow rate. Reduce pulsation, more stable totransfer liquid.
  • Big fow rate design, speed range is 180-600 rpm.

Technical Parameter

Speed range 9.54-3100mL/min
Speed control Manual stepless speed regulation
Voltage 3 phase 380V(standard)/3 phase 220V(optional)
Drive dimension(LxWxH) 424x230x330(mm)
Drive weight 30kg
Condition temperature 0~40°C
Relative humidity <80%
Explosion-proof grade ExdIlBT4 Gb
IP rate IP55

Pump Head Parameter

Drive
Speed(rpm)
Pump Head
Tubing Size
Flow Rate(mL/min)
EXP600-1/EasyPump
180-600
EasyPump
13#, 14#, 19#, 16#, 25#, 17#, 18#, 15#, 24#, 35#, 36#
9.54-3100

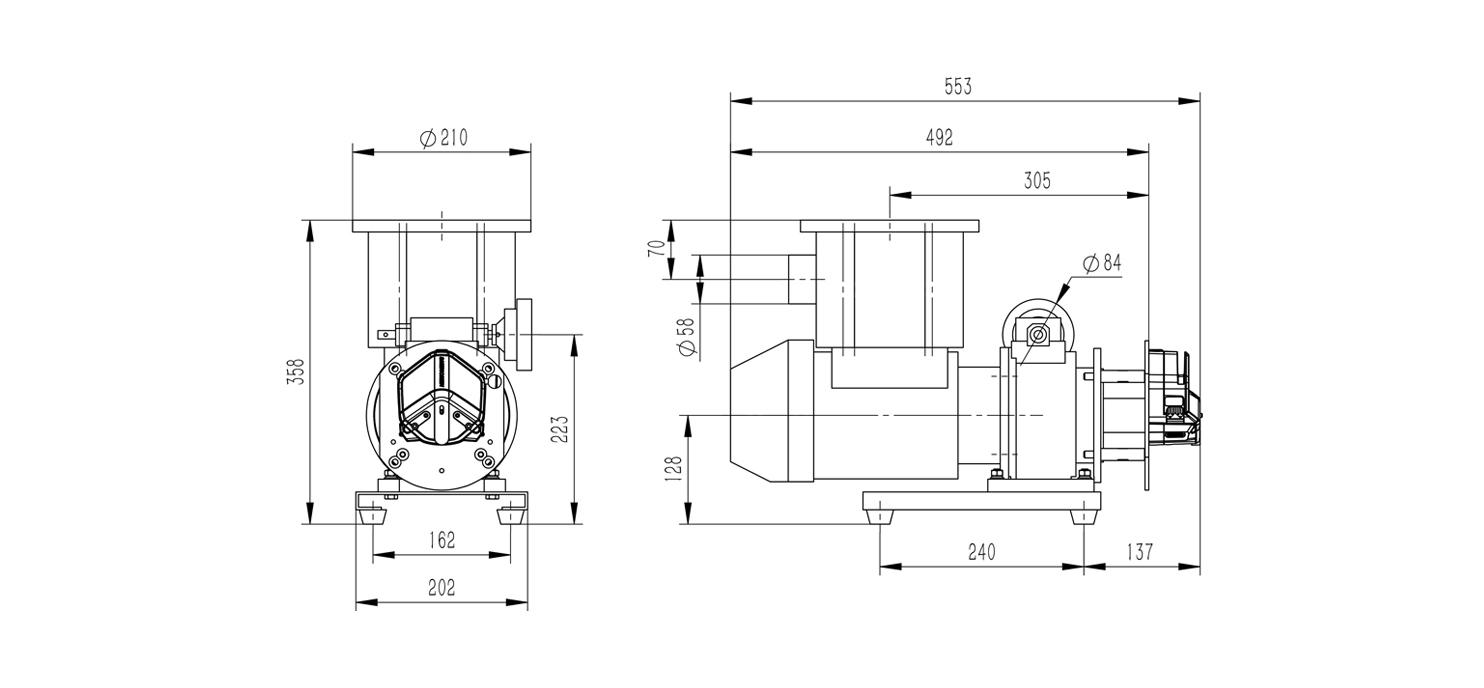

Dimension(Unit:mm)
