LabT/UD15
    Speed range：0.1-350rpm
    Flow range：0.08-930mL/min
Optional pump head：
UD15
Online consultation
Download

Product Introduction

  • Easy to install pump head, stable flow rate.
  • Lower power, silent working.
  • High definition OLED display screen.
  • Convenient to adjust the speed through digital knob.
  • Power-down memory function.

Technical Parameter

Flow rate range 0.08-930mL/min
Speed range 0.1-350rpm, reversible
Speed resolution 0.1rpm
Speed control Digital knob
Control method Mechanical keypad
Keypad lifetime 300.000 times
Display OLED display(0.96")
Communication interface RS485 support MODBUS protocol
External control Start/stop direction control (switch signal),0-5V,4-20mA (standard); 0-10V (optional)
Power supply DC 24V/1A with power adapter
Dimension 180x115x125mm(LxWxH)
Weight 800g
Condition temperature 0-40°C
Relative humidity <80%
IP rate IP31

Pump Head Parameter

Model
Speed range
 Tubing Flow rate (mL/min)
LabT-UD15 0.1-350rpm 16#，17#，25# 0.08-930

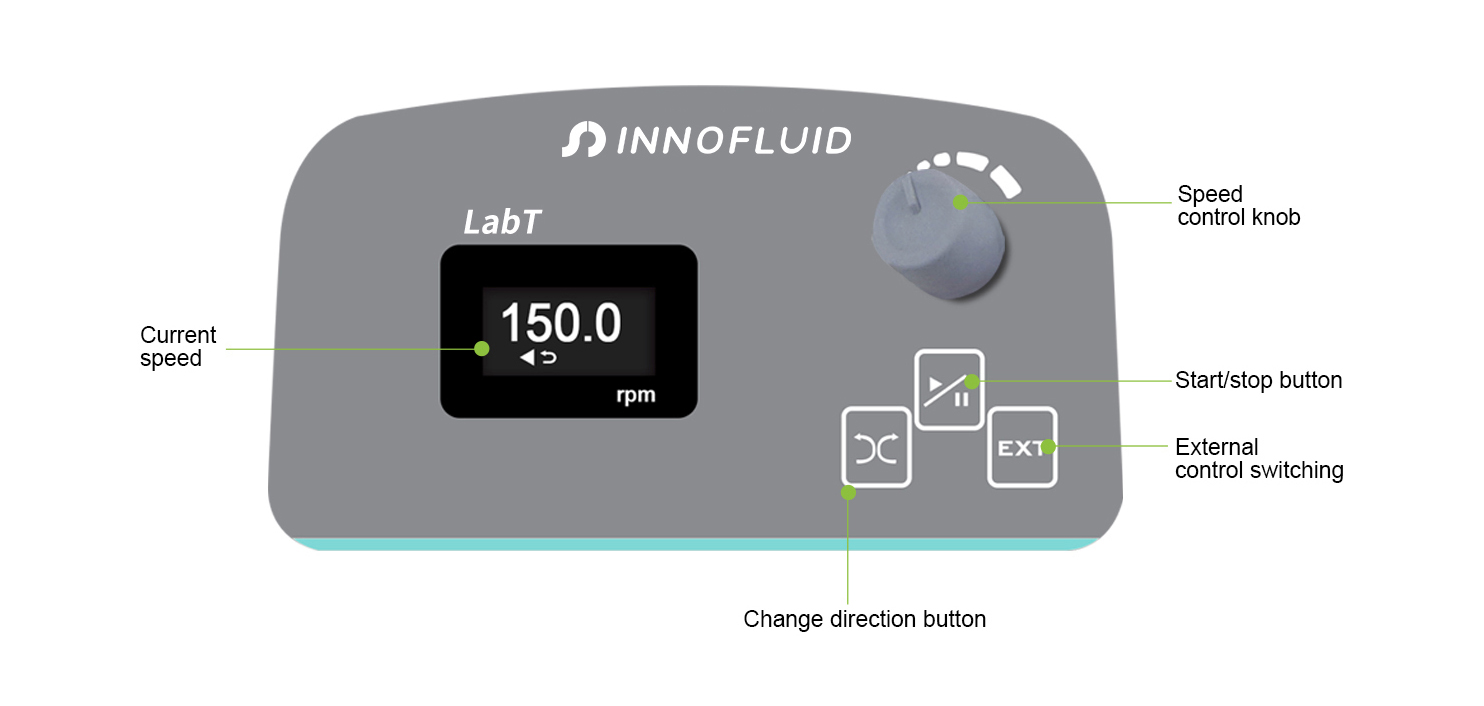

OSD

Dimension（Unit：mm）
