LabN6
3-Year Warranty
    Speed range：0.1-600rpm
    Flow range：0.0053-2580mL/min
Optional pump head：
EasyPump
YZ Series
Online consultation
Download

Product Introduction

  • Friendly interface, 3.2 inch big screen LCD display working parameters in real time.
  • Super silent drive setting, precise control, low vibration and low noise.
  • Timing function, the time range is 0.1s - 9999 hours, can be used for simple dispensing function.
  • Streamlined body design, with ABS Engineering Plastic Shell and add UV Spray Coating.
  • Power down memory function, store parameters in time, safe and reliable. Strong anti-jamming feature wide voltage design, suitable for complex power supply environment.

Technical Parameter

Flow rate range 0.0053-2580mL/min
Speed resolution 0.1rpm
Back suction angle 0-360°
Testing time range 0.1s-9999h
Display 3.2" color LCD screen display
Motor type Closed-loop stepper motor
Control system Mechanical keypad+Rotary encoded switch
Keypad lifetime 300,000 times
External control speed signal 0-5V,0-10V,4-20mA for option
Start/stop.direction siqnal Passive switch signal, such as foot pedal switch; Active switch signal: 5V-24V
Communication interface RS232, RS485 support Modbus protocol(RTU mode)
Output interface Output motor working status (Open-Collector output)
Power supply AC 220V±10%, 50Hz/60Hz(standard), AC 110V±10%, 50Hz/60Hz (optional)
Drive dimension 259x157x237mm(LxWxH)
Drive weight 4.40kg
Power consumption < 80W
Environment temperature 0-40°C
Relative humidity <80%

Pump Head Parameter

Pump head Tubing Size Speed Flow rate(mL/min)
EasyPumpI/III 13#,14#,19#,16#.25#,17#,18# 0.1-600rpm 0.0053-2580
EasyPumpll/IV —— ——
EasyPumpV/VI 13#,14#,19#,16# 0.0053-560
2*EasyPumpI/III 13#,14#,19#,16#,25# 0.0053-1180
2*EasyPumpll/IV —— ——
2*EasyPumpV/VI 13#,14#,19#,16# 0.0053-560
YZ1515x 13#,14#,19#,16#,25#,17#,18# 0.007-2280
YZ2515x 15#,24# 0.17-1740


Pump Head & Flow Rate


Pump Head Tubing lDxWall
thickness(mm)		 mL/r Flow Rate(mL/min)
(0.1-600rpm)		 Tubing Max.Pressure(Mpa) Weight(kg)
Intermittent Continuous
Single Channel
EasyPump I/III		 13# 0.8x1.6 0.053 0.0053-32 0.27 0.17 0.6
14# 1.6x1.6 0.27 0.027-162
19# 2.4x1.6 0.55 0.055-330
16# 3.2x1.6 0.933 0.0933-560
25# 4.8x1.6 1.967 0.1967-1180 0.24 0.14
17# 6.4x1.6 3.333 0.3333-2000 0.14 0.10
18# 7.9x1.6 4.3 0.43-2580 0.10 0.07
Dual Channel
EasyPump V/VI		 13# 0.8x1.6 0.053 0.0053-32 0.27 0.17
14# 1.6x1.6 0.27 0.027-162
19# 2.4x1.6 0.55 0.055-330
16# 3.2x1.6 0.933 0.0933-560
25# 4.8x1.6 1.967 0.1967-1180 0.24 0.14

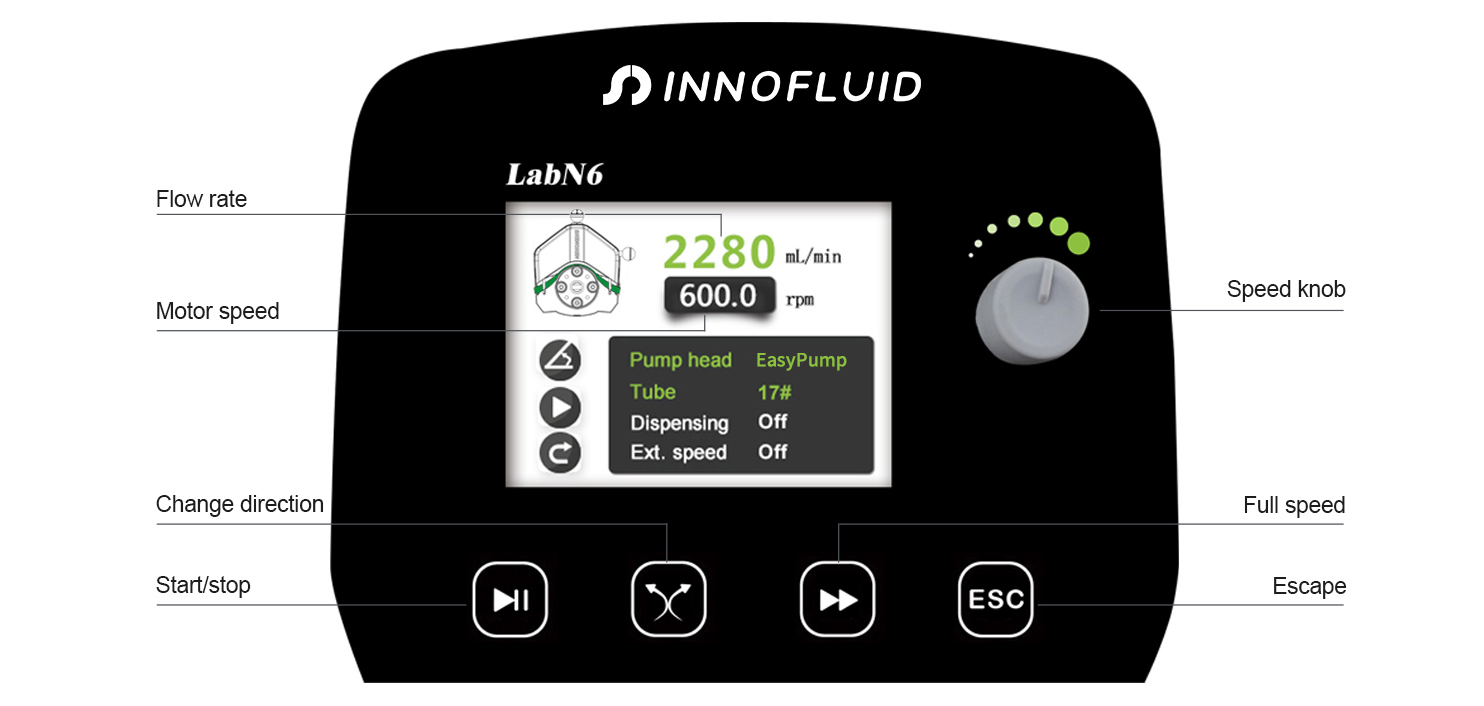

OSD

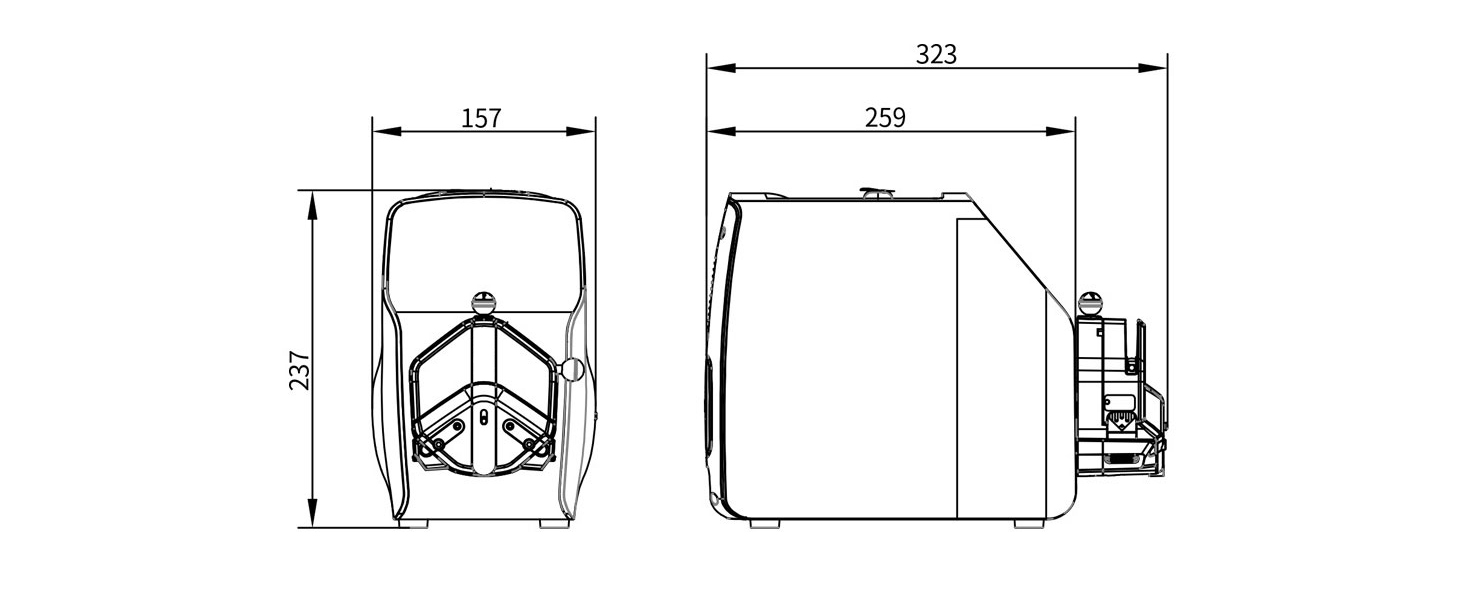

Dimension（Unit：mm）
