ST-HandyPump
3-Year Warranty
    Speed range：0.1-300rpm
    Flow range：0.0033-365.69mL/min
Optional pump head：
HandyPump
Online consultation
Download

Product Introduction

  • 304 stainless steel shell, resist corrosion. Can be stacked to use.
  • Closed-loop stepper motor, compact structure, low noise, low vibration.
  • OLED screen display working speed and status. Digital knob control speed, easy operation.
  • Support RS232 and RS485 communication.
  • Various external control interface.
  • Wide voltage design, high versatility.

Technical Parameter

Flow rate range 0.0033-365.69mL/min
Speed range 0.1~300rpm
Speed resolution 0.1rpm
Control method Dlgital knob control/Mechanical keypad
Motor type Stepper motor
Display OLED display(0.96")
Power consumption ≤75W
Weight 2.92Kg
Keypad lifetime 300,000 times
Power supply AC100V-240V(50Hz/60Hz)
External control Startstop control (switch signal)speed: 0-5V,4-20mA(standard), 0-10V (optional)
Communication interface RS485, RS232
Condition temperature 0-40℃
Relative humidity <80%
Output interface Output motor working status (Open-Collector output)
Drive dimension(LxWxH) 217.1x132.5x128.5mm(LxWxH)

Pump Head Parameter

Flow rate (mL/min)Model
 Pump Head Speed range(rpm)
Tubing
Flow rate (mL/min)
ST-HandyPump
HandyPump01
0.1-300rpm
13#, 14#, 19#, 16#, 25#
0.0033-365.69
HandyPump02
13#, 14#, 19#, 16#
0.0033-190.76

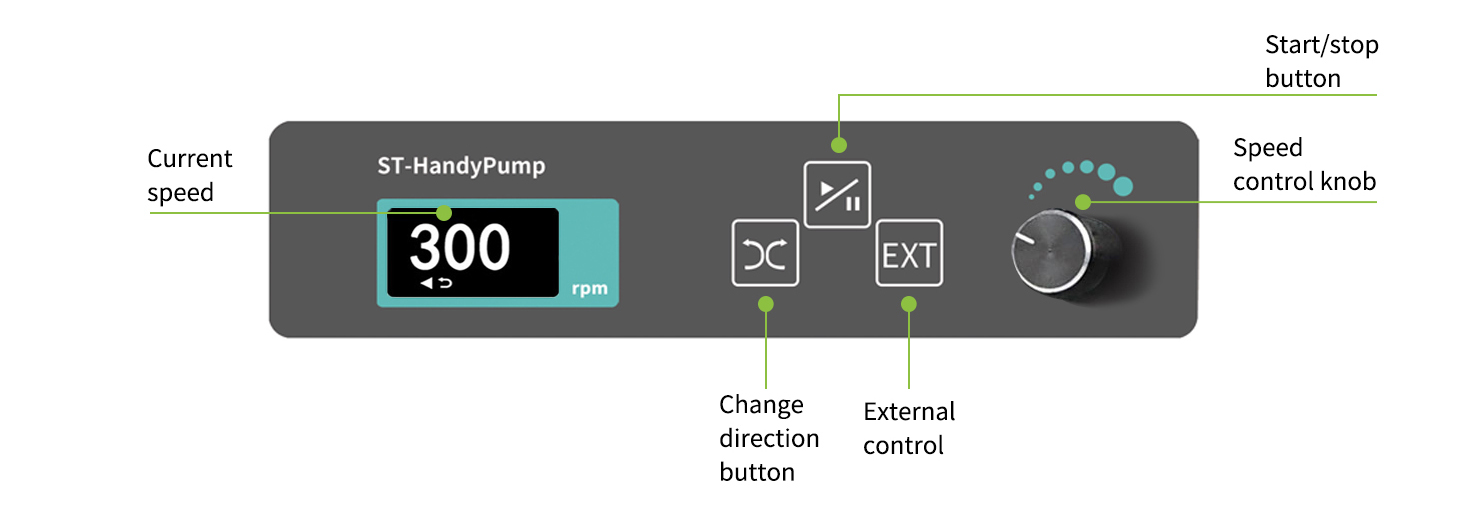

OSD

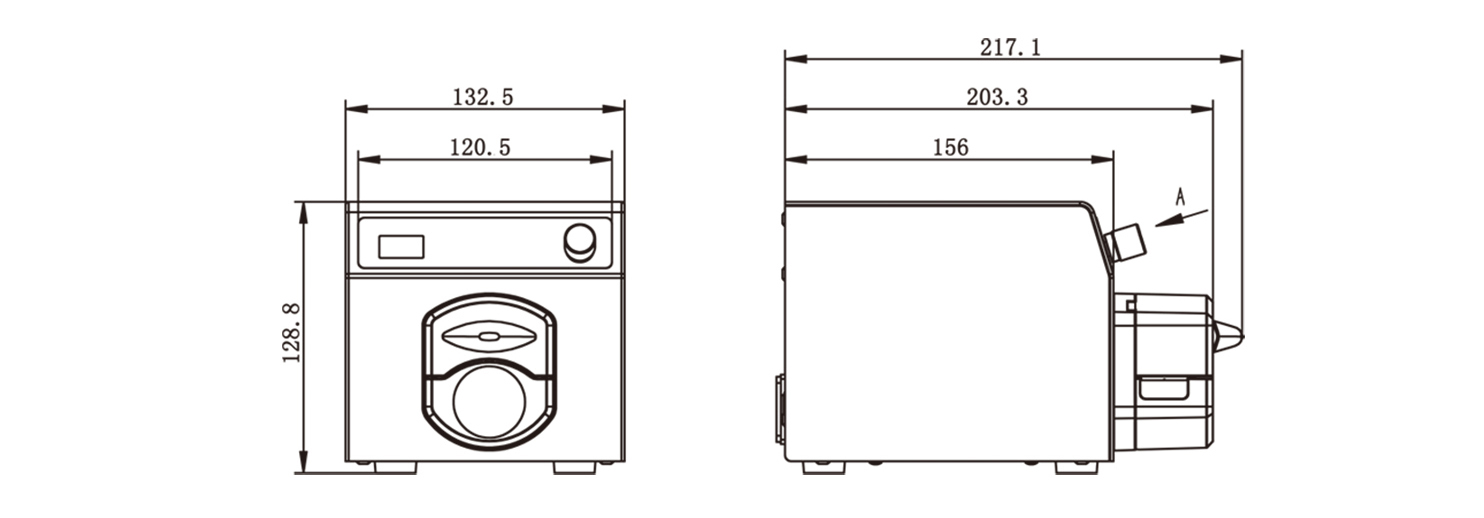

Dimension（Unit：mm）
