LabT/KT15
    Speed range：0.1-350rpm
    Flow range：0.0033-326.55mL/min
Optional pump head：
KT15
Online consultation
Download

Product Introduction

  • Easy to install pump head, stable flow rate
  • Lower power, silent working
  • High definition OLED display screen.

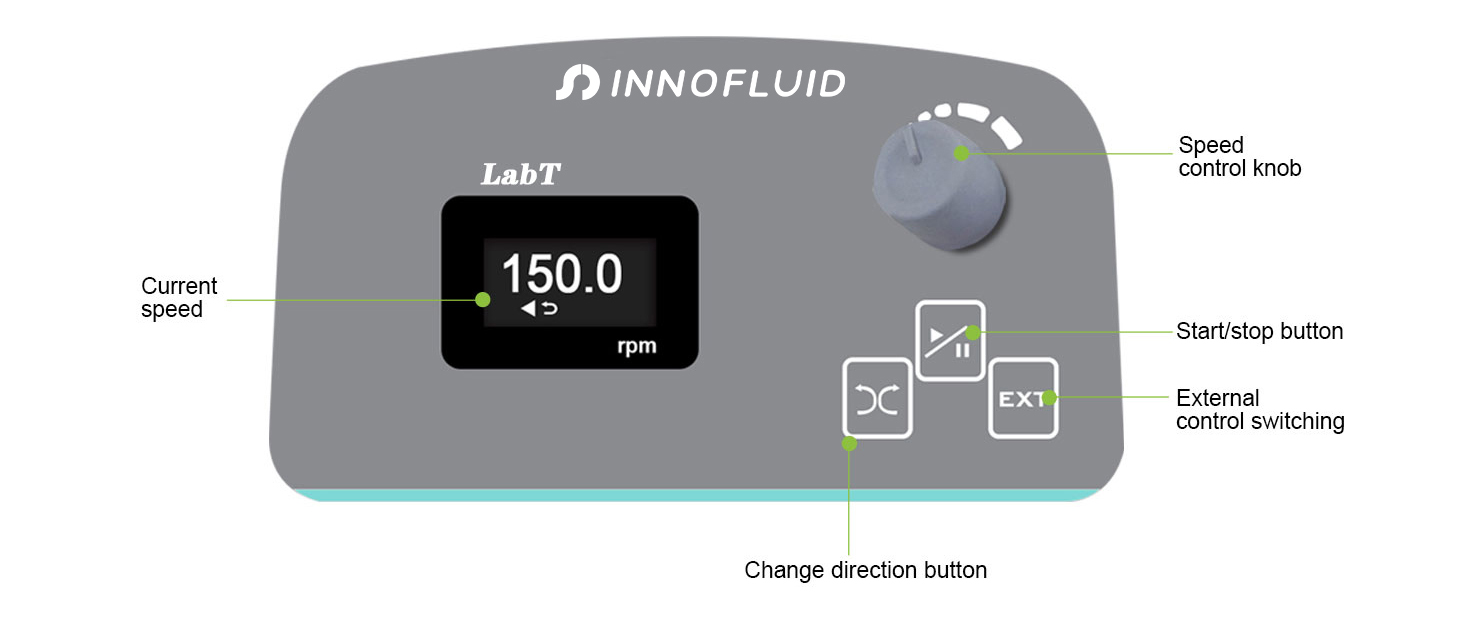

  • Convenient to adjust the speed through digital knob
  • Power-down memory function.

Technical Parameter

Flow rate range 0.0033-326.55mL/min
Speed range 0.1-350rpm/min
Speed resolution 0.1rpm
Control method Mechanical keypad
Display OLED display(0.96")
Communication interface USB interface, RS485 interface (Modbus protocol, RTU mode)
External control Start/stop,optional (switch signal),0-5V,4-20mA(standard); 0-10V(optional)
Power adapter Standard 220Vto 24VDC/1.25A adapter
Dimension 180x115x125m(LxWxH)
Weight 1100g
Power consumption <15W
Condition temperature 0-40°C
Relative humidity <80%

Pump Head Parameter

Model
Speed range
Tubing
Flow rate (mL/min)
LabT-KT15
 0.1-350rpm
13#
0.0033-11.55
14#
0.0156-54.60
19#
0.0286-100.10
16#
0.0477-166.95
25#
0.0933-326.55

OSD

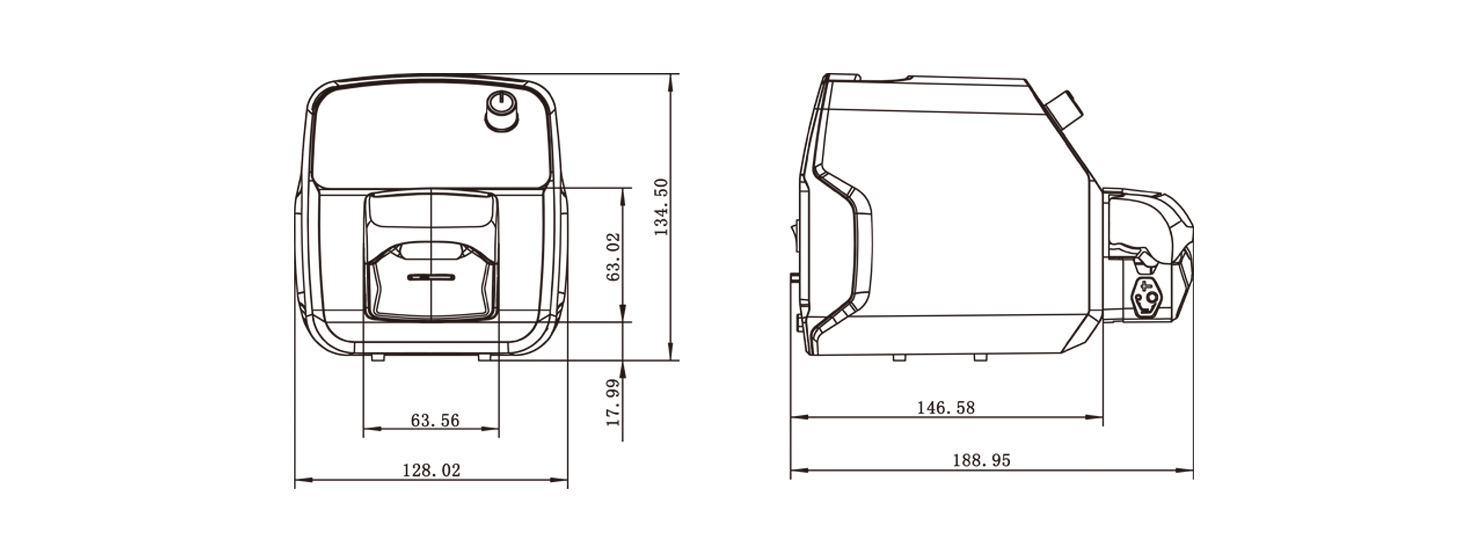

Dimension（Unit：mm）

Video Tutorials

Operation Demonstration
Operation Demonstration
