HPM600G/GY15
5-Year Warranty
    Speed range：0.1-600rpm
    Flow range：0.0255-513mL/min
Optional pump head：
GY15
Online consultation
Download

Product Introduction

  • The pump shell protection level is IP66, specially designed for industrial environments. It features 6 types of sealing structures that withstand extreme humidity and temperature conditions, ensuring long-term stable operation.
  • The intelligent control system supports both transferring and dispensing functions.
  • The 4.3-inch touch screen enables simplified operation, parameter configuration, and calibration.
  • Circuit isolation is achieved both inside and outside the external control interface.
  • Aluminum alloy body with excellent heat dissipation performance.
  • Three levels of permissions management function.

Technical Parameter

EMC Standard IEC 61000-6-2/IEC 61000-6-4/IEC 61000-3-2/IEC 61000-3-3
Housing material Aluminum alloy
Speed range 0.1-600 rpm
Speed adjustment resolution 0.01 rpm
Display 4.3-inch industrial-grade color LCD screen
Control modes Touch screen, mechanical keypad, external control signal control, communication control
Working modes Transferring mode, dispensing mode (Fixed volume, dispensing, speed dispensing)
Transferring mode Continuous operation at set flow rate and speed
Dispensing mode Dispensing:Set volume, time, repeat numbers, pause time
Dispensing:Set volume, flow rate, repeat numbers, pause time
Speed dispensing:Set speed (rpm), time, repeat numbers, pause time
Dispensing volume range 0.1ml-9999L
Dispensing time range 0.1s-9999h
Pause time range 0.5s-9999h
Repeat numbers 1-9999 times, 0 means unlimited times
Calibration Automatic calibration after inputting actual running liquid volume
Communication interface RS485
Communication protocol Modbus protocol (RTU mode)
External control speed signal 0-5V, 0-10V, 4-20mA (optional)
External control signal input Active switch signal (5-24V) controls start/stop, direction; Passive switch signal controls start/stop
Signal output Open collector output operation status; 4-20mA output
Status Output Open collector output for running status
Frequency Output Speed-Frequency Output，Frequency Range600Hz-3000Hz
Signal output Open collector output operation status; 4-20mA output
Three levels of permissions Three user access levels (Administrator, Technician, and Operator) with distinct permission settings
Leak detection function Immediately stop operation upon leak detection
Drive dimension 320mm*160mm*222mm
Power supply AC110V-220V，50/60Hz
Rated power 110W
Relative humidity <90%
Working environment 0-40℃
Protection level IP66
Drive weight 6.3kg

Pump Head Parameter

Model Housing material Tube clamp material Tubing (Speed: 0-600rpm)
Flow rate range(mL/min)		 Weight
(kg)
Tubing No. IDxWT (mm)
GY15

Aluminum alloy

 Stainless steel 14# 1.6x1.6 0.0255-153 0.95
19# 2.4x1.6 0.051-306
16# 3.1x1.6 0.0855-513

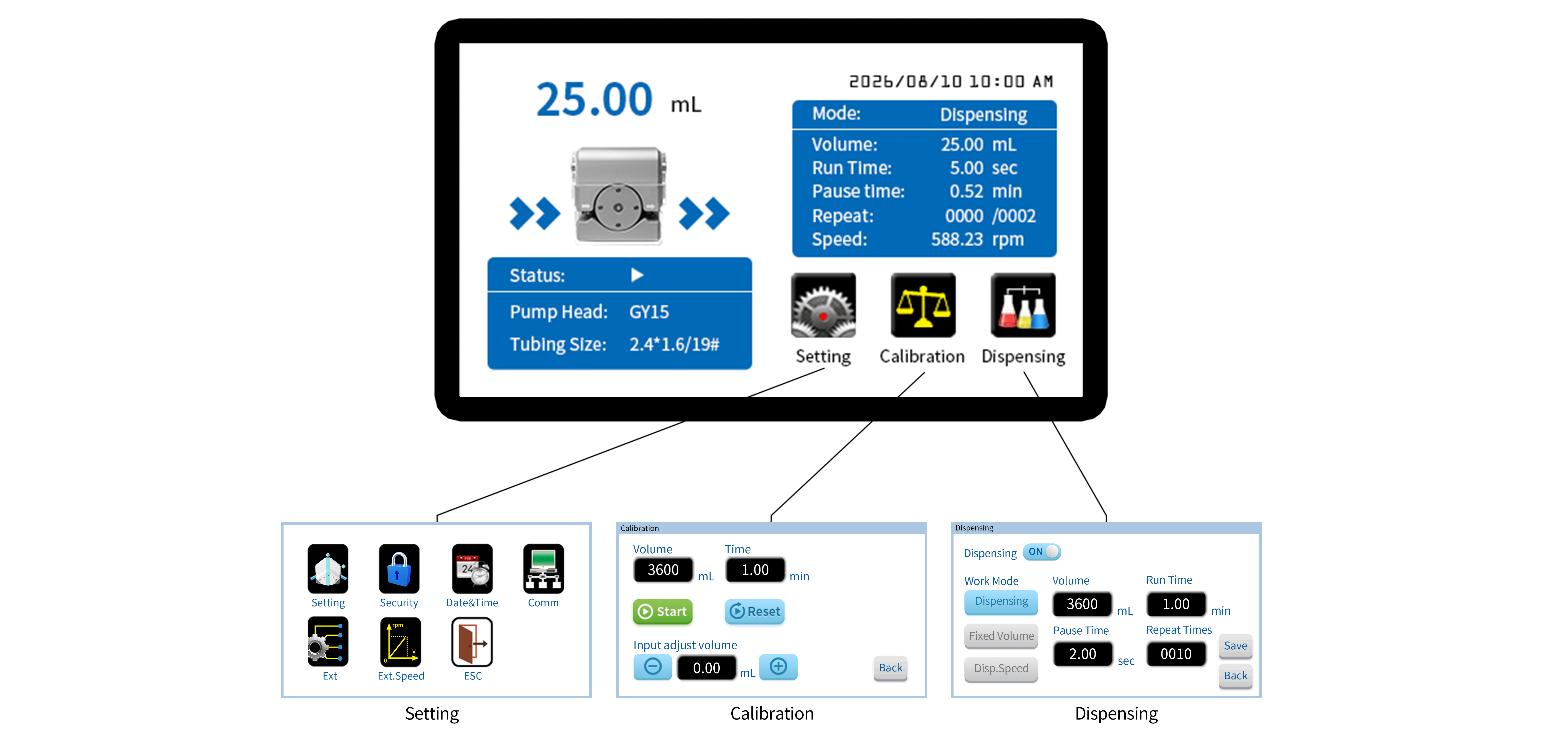

OSD

Qualification Certificate

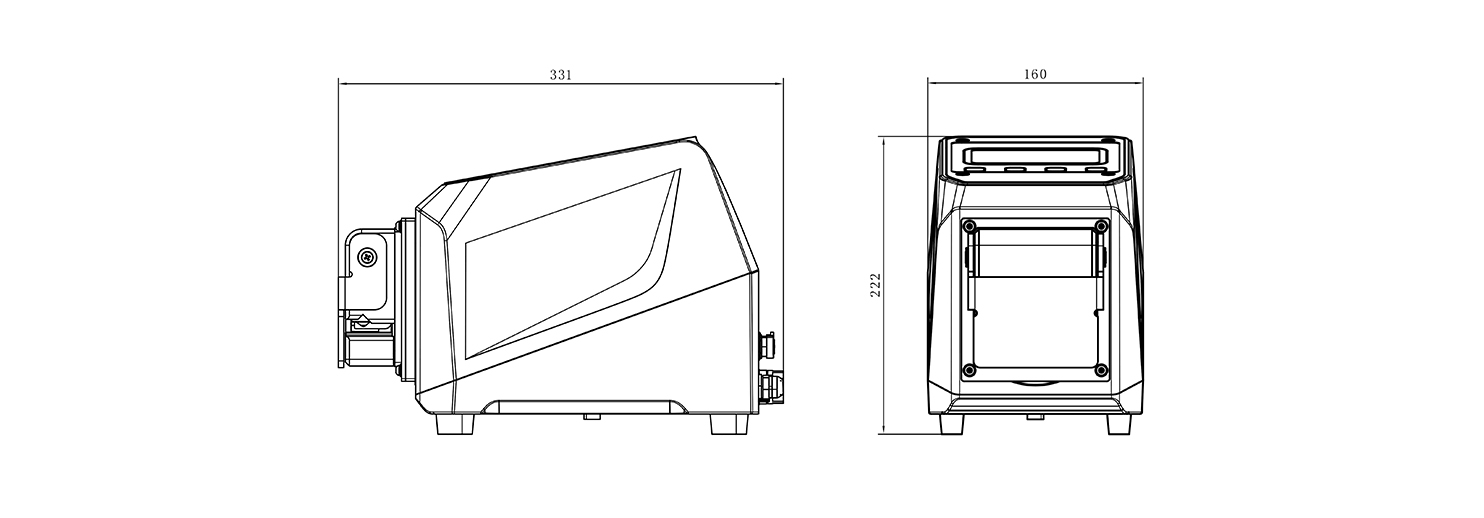

Dimension（Unit：mm）
