HPN100/AMC
5-Year Warranty
- Speed range：0.1-150 rpm
- Flow range：0.0002-65 mL/min
Optional pump head：
AMC
- Product Introduction
- Technical Parameter
- Pump Head Parameter
- OSD
- Dimension
Product Introduction
- The protection level of the whole machine shell reaches IP66 and is designed specifically for industrial environments.The body has 6 types of sealing structures, which can withstand all kinds of harsh and hot environments, and ensure long-term stable operation of equipment.
- The 3.2-inch color LCD screen combined with commonly used buttons makes operation convenient.
- The animation displays the operating status, with flow rate and speed shown simultaneously on the screen.
- Supports flow calibration and online fine-tuning.
- Multiple external control methods easily meet remote control requirements.
- Supports RS485 communication and the standard Modbus communication protocol (RTU mode) to meet various applications.
- Supports a key lock function with adjustable lock time.
Technical Parameter
| Implementation standards | GB/T4208-2017, Q/BSC01-2019 |
| Shell material | Aluminum alloy |
| Speed range | 0.1-150 rpm |
| Speed adjustment resolution | 0.1 rpm |
| Display method | 3.2-inch true-color LCD screen |
| Control method | Mechanical button, external signal, communication control |
| Working mode | Transmission modes, dispensing |
| Transmission mode | Continuous operation according to the set speed (flow rate displayed on the same screen) |
| Dispensing | Automatic stop after timed operation according to the set time |
| Dispensing time range | 0.1 seconds - 9999 hours |
| Back suction angle setting | 0-360° |
| Communication interface | RS485 |
| Communication protocol | Modbus protocol (RTU mode) |
| External control speed control signal | External speed control signal: 0-5V, 0-10V, 4-20mA (selectable) |
| External control signal input | Active switch signal (5-24V) controls start/stop, direction, full speed; passive switch signal controls start/stop |
| External control signal type | Pulse and level modes selectable |
| Signal output | pen collector output operation status |
| Lid open stop function | Prevents accidental operation and protects user safety (works when compatible with pump heads with lid open stop function) |
| Button lock function Lock time setting range | 5 seconds - 60 seconds |
| Driver size | Dimensions: 269mm x 160mm x 221mm (L x W x H) |
| Driver weight | 5.9Kg |
| Applicable power supply | AC110-220V±10%，50/60Hz |
| Rated power | 80W |
| Operating temperature | 0-40℃ |
| Operating humidity | ＜100% |
| Protection class | IP66 |
Pump Head Parameter
| Pump Head | Tubing Size | Speed | Flow rate(mL/min) |
| AMC1-AMC12(10) | ID: 0.13-3.17mm, Wall: 0.8-1mm | 0.1-150rpm | 0.0002-48 |
| AMC1-AMC12(6) | ID: 0.13-3.17mm, Wall: 0.8-1mm | 0.0002-65 |

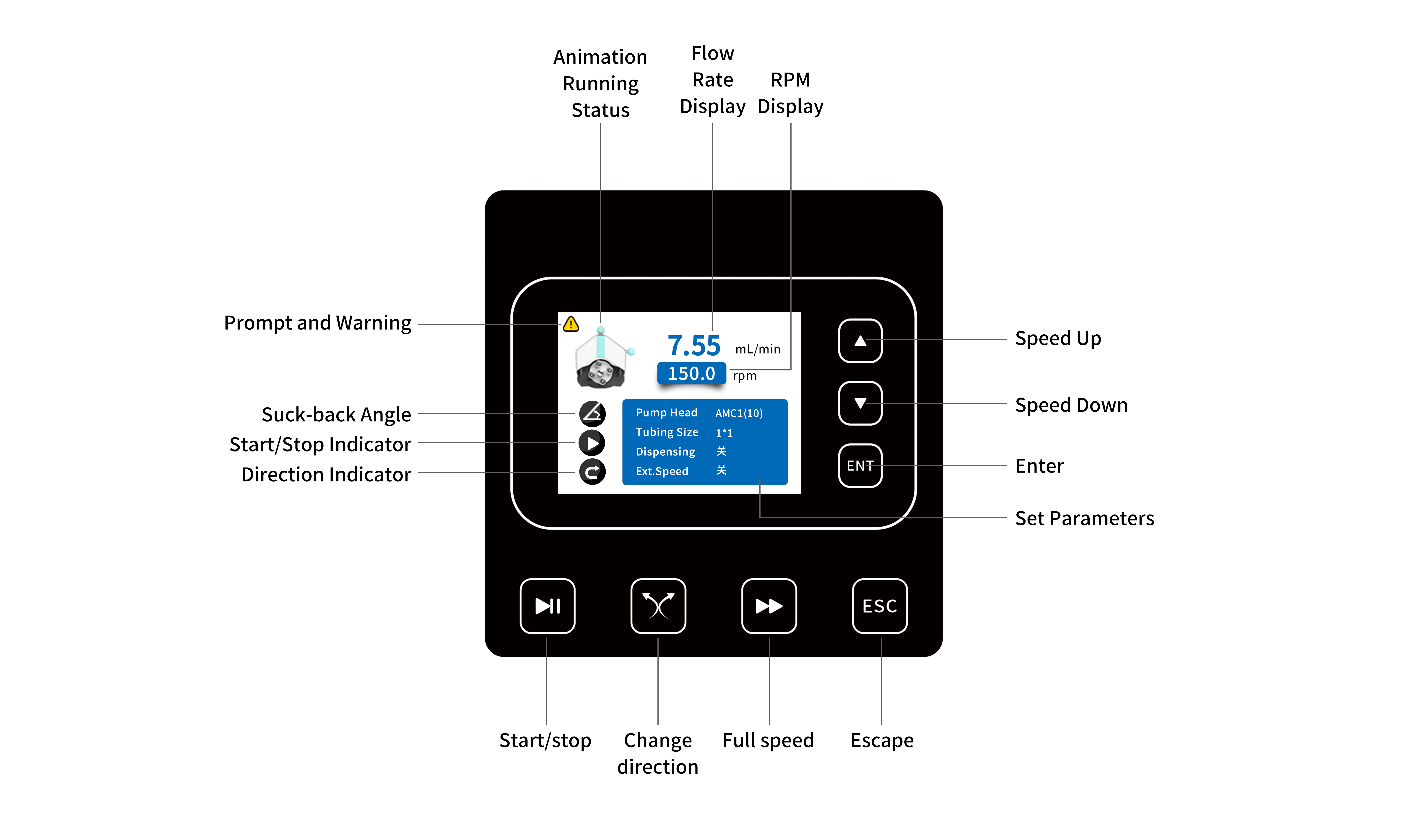

OSD

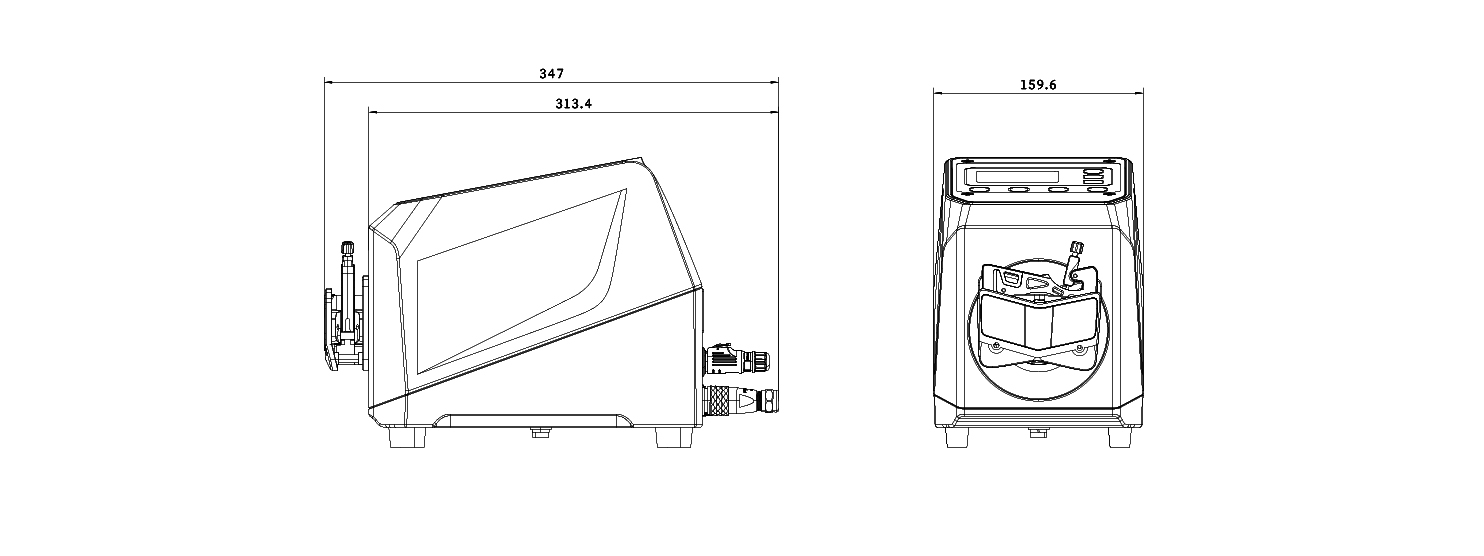

Dimension（Unit：mm）
