OEM- HYB032-034
    Speed range：0.1-300rpm
    Flow range：0.0033-365.69mL/min
Optional pump head：
HandyPump
Online consultation
Download

Product Introduction

  • Flow rate range: 0.0033-365.69mL/min.
  • Front knob to open the pump head, save space.
  • Automatic tubing retention makes tube loading easy and quick.
  • Single and dual-channel head available.
  • 5 different size tubing to meet different flow rate requirements.

Technical Parameter

Model No. OEM- HYB032-034
Speed range 0.1-300rpm
Flow rate 0.0033-365.69mL/min
Control method Start/stop and direction reversal controlled by passive signal or active signal (3.3V–5V)
Control method signal logic Optocoupler conduction operation/cut-off operation (can be modified by host computer software)
Motor type Integrated closed-loop stepper motor
Output signal Open collector output
Speed control OEM-HYB032:External analog speed control via 4–20 mA signal
OEM- HYB033:External analog speed control via 0-5V signal
OEM- HYB034:External analog speed control via 0-10V signal
Power supply DC24V-DC36V (Recommend DC24V), ≥50W
Working ambient 0-40℃,＜80%RH

Product lctroduction

Pump Head
 Channel number Tubing IDxWall(mm) mL/r
(3 rollers)		 mL/r
(6 rollers)		 Speed(rpm)
Flow Rate
(mL/min)
(3 rollers)
 Flow Rate
(mL/min)
(6 rollers)		 Weight(kg)
HandyPump01 Single
channel		 13# 0.8x1.6 0.033 0.031 0.1-300 0.0033-10.03 0.0031-9.36 0.224
(3 rollers)

0.302
(6 rollers)
14# 1.6x1.6 0.187 0.126 0.0187-56.09 0.0126-37.68
19# 2.4x1.6 0.371 0.215 0.0371-111.17 0.0215-64.51
16# 3.2x1.6 0.636 0.345 0.0636-190.76 0.0345-103.51
25# 4.8x1.6 1.219 0.636 0.1219-365.69 0.0636-190.81
HandyPump02 Dual
channel		 13# 0.8x1.6 0.033 - 0.1-300 0.0033-10.03 - 0.224
(3 rollers)
14# 1.6x1.6 0.187 - 0.0187-56.09 -
19# 2.4x1.6 0.371 - 0.0371-111.17 -
16# 3.2x1.6 0.636 - 0.0636-190.76 -

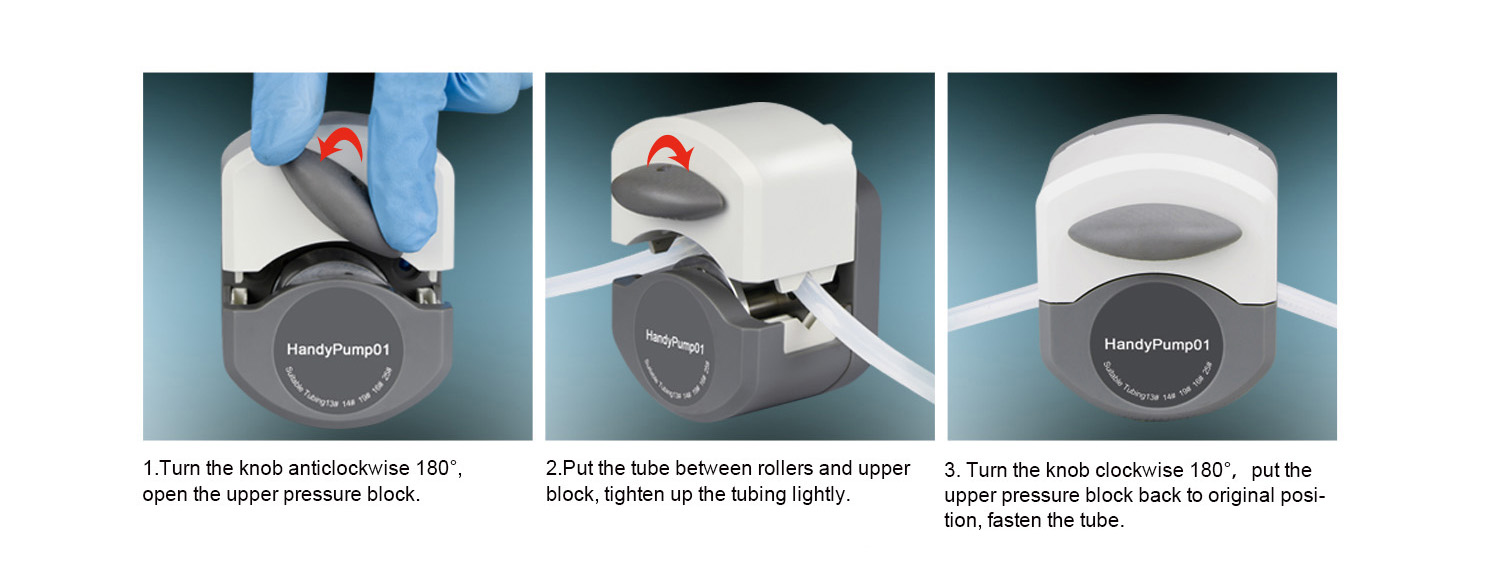

Tubing Installation Procedure

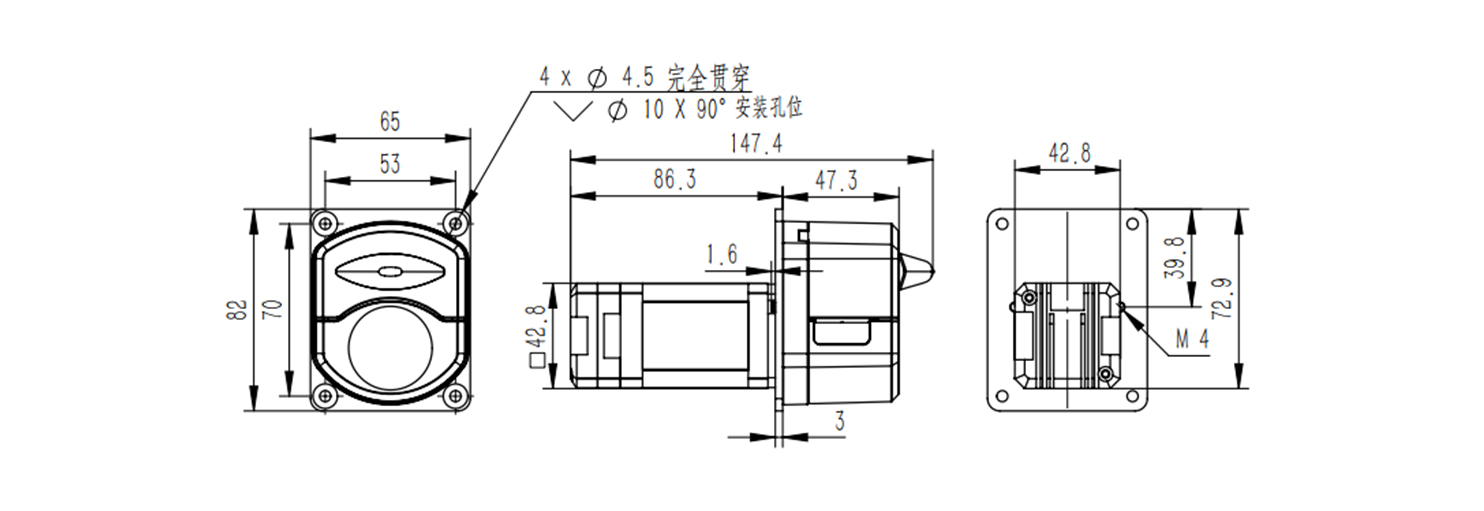

Dimension（Unit：mm）
