OEM-KTB002/003/004
    Speed range：0.1-400rpm
    Flow range：0.0033-373.2mL/min
Optional pump head：
KT15
Online consultation
Download

Product Introduction

  • The upper pressing block is opened by a turning method, and the operation is simple.
  • The elastic upper block can reduce tubing wear.
  • Quickly replace tubing with self-adaptive tube clamp.
  • Suitable for 5 different sizes of hoses to meet different flow requirements.
  • Exquisite appearance, small size.

Technical Parameter

Model No. OEM-KTB002/003/004
Speed range 0.1-400rpm
Flow rate range 0.0033-373.2mL/min
Outer control Passive switch signal control start/stop and direction
Speed control External potentiometer speed control 0-5V,0-10V,4-20mA
Motor type 42 stepper motor
Power supply DC24V
Working environment 0-40°C,80%RH
OEM-KTB002 42-60 stepper motor with M42/4-20mA control module
OEM-KTB003 42-60 stepper motor with M42/0-5V control module
OEM-KTB004 42-60 stepper motor with M42/0-10V control module
OEM-KTB005 42-60 stepper motor with M42/USB fixed speed control module
OEM-KTB006 42-60 stepper motor with M42/RP potentiometer speed control module
OEM-KTB007 42-60 stepper motor with M42/RP-A external potentiometer speed control module
OEM-KTB008 42-60 stepper motor with PM26
OEM-KTB009 42-60 stepper motor with M42/RS232 communication control module
OEM-KTB010 42-60 stepper motor with M42/RS485 communication control module

Product lctroduction

Pump Head
Channel
Number
 Tubing ID xWallThickness(mm) mL/r (0.1-400rpm)
Flow Rate(mL/min)		 Weight(kg)
KT15 Single
channel		 13# 0.8x1.6 0.033 0.0033-13.20 0.096
14# 1.6x1.6 0.156 0.0156-62.40
19# 2.4x1.6 0.286 0.0286-114.40
16# 3.2x1.6 0.477 0.0477-190.80
25# 4.8x1.6 0.933 0.0933-373.20

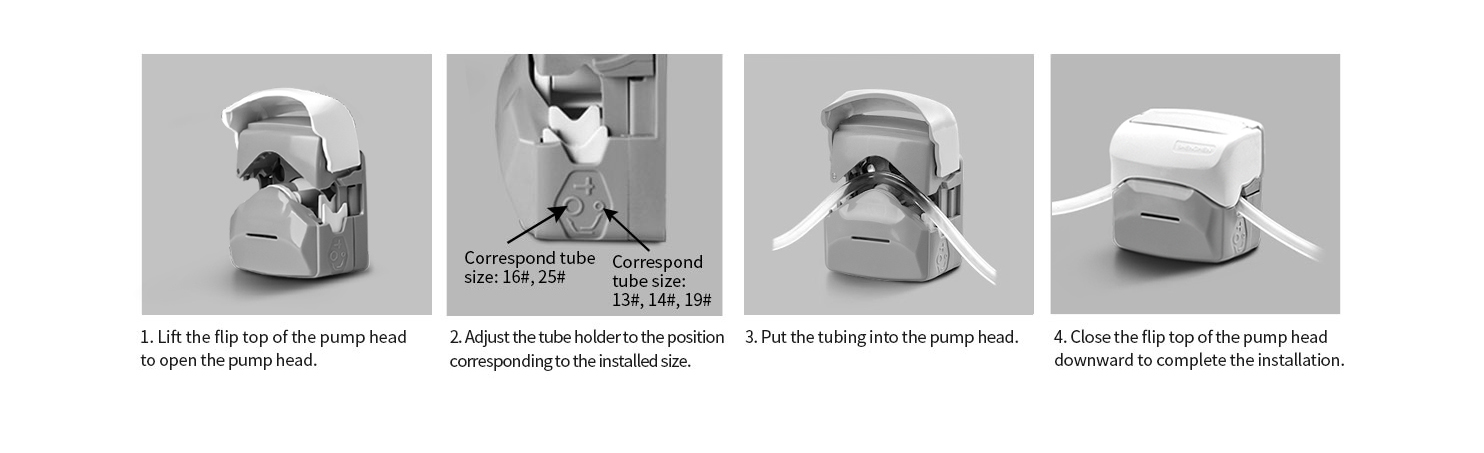

Tubing Installation Procedure

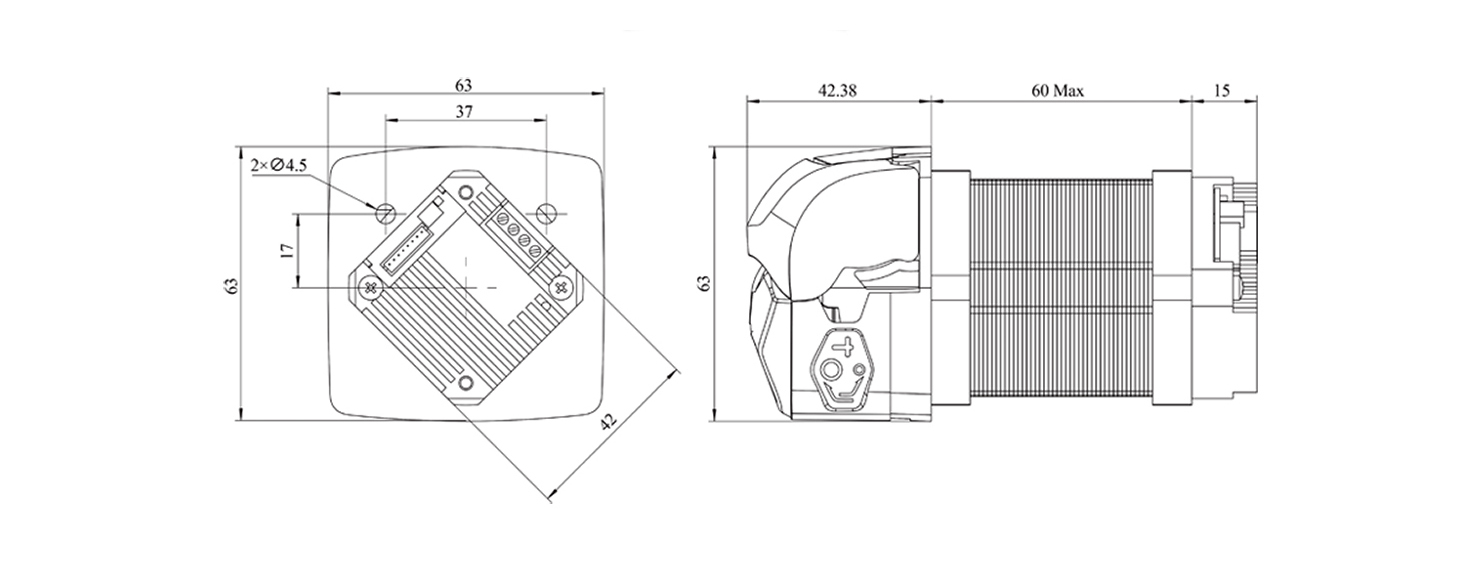

Dimension（Unit：mm）
