- Cartridges and bases body is separated. It is convenient to change the tubing.
- New cartridge structure design, can use both the special connector and the flexible tube card.
- Wide flow rate range, accept 15#, 24#, 35# and 36# tubing.
- Pump head is stackable.
| Model No. | Housing Material | Tubing Clamp Material |
Tubing | Flow Rate(mL/min) (0.1-600rpm) |
Weight(kg) | |
| Tubing Sizes | ID×Wall Thickness(mm) | |||||
| DZ25-6L | Aluminum alloy/PPS | PP | 15# | 4.8×2.4 | 0.3-1800 | 1.86/0.86 |
| 24# | 6.4×2.4 | 0.55-3300 | ||||
| 35# | 7.9×2.4 | 0.8-4800 | ||||
| 36# | 9.6×2.4 | 1-6000 | ||||
- This pump head is suitable for high viscous liquid which include granule and floc.
- It is also suitable for high pressure request.

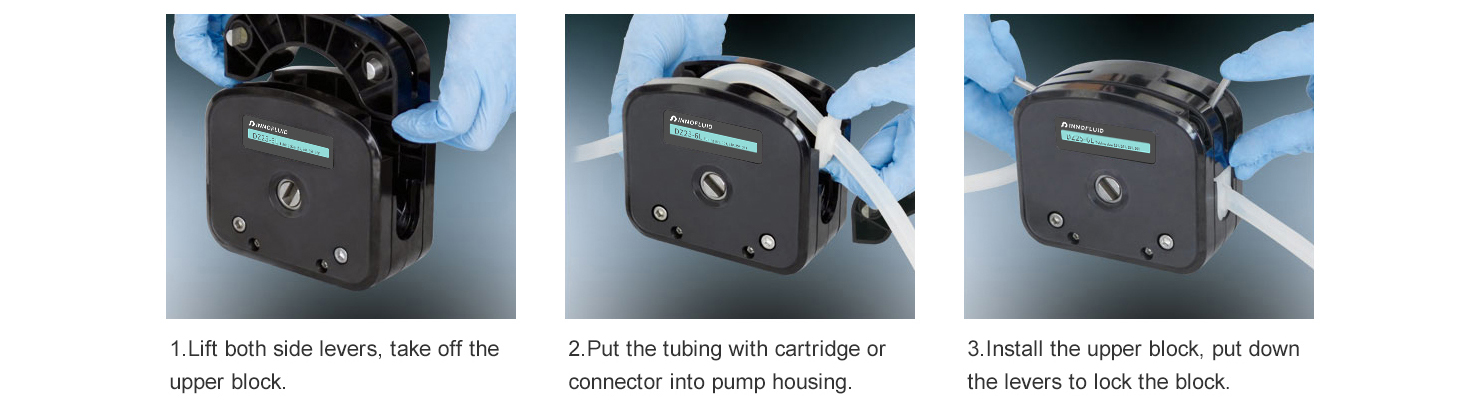

Tubing Installation Demonstration
https://innofluid-english.oss-us-west-1.aliyuncs.com/%E6%B3%B5%E5%A4%B4%E7%9B%B8%E5%85%B3/DZ25-3L%E6%B3%B5%E5%A4%B4%E8%BD%AF%E7%AE%A1%E5%AE%89%E8%A3%85%E6%BC%94%E7%A4%BA-%E8%8B%B1%E6%96%87-%E6%9C%89logo.mp4
