OEM-B501
    Speed range：0.1-600 rpm
    Flow range：0.211-3600 mL/min
Optional pump head：
DZ25-3L
Online consultation
Download

Product Introduction

  • Easy operation, change tubing rapidly.
  • Suitable for high viscous liquid.
  • Use flexible tube clamp, meet hygiene requirements.

Technical Parameter

Model No. OEM-B501
Speed range 0.1-600 rpm
Speed control Digital knob(Optional)
Display OLED(Optional)
Control method Toggle switch control start and stop, direction (optional)
External control start and stop Switch signal (default 5V)
External control speed 0-5V, 4-20mA(standard), 0-10V(optional)
Communication interface RS485(Modbus protocol, RTU mode)
Motor type 57 Closed-loop stepper motor
Voltage DC24V/1A(mainboard) DC36V/3A(drive)
Working environment 0-40℃, 80%RH

Flow Range

Model No. Housing Material Tubing Clamp
Material		 Tubing Flow Rate(mL/min)
(0.1-600rpm)		 Weight(kg)
Tubing Sizes ID×Wall Thickness(mm)
DZ25-3L PPS PP 15# 4.8×2.4 0.211-1264 0.5
24# 6.4×2.4 0.385-2310
35# 7.9×2.4 0.508-3050
36# 9.6×2.4 0.6-3600

Installation Steps

Application Cases

  1. This pump head is suitable for high viscous liquid which include granule and floc.
  2. It is also suitable for high pressure request.

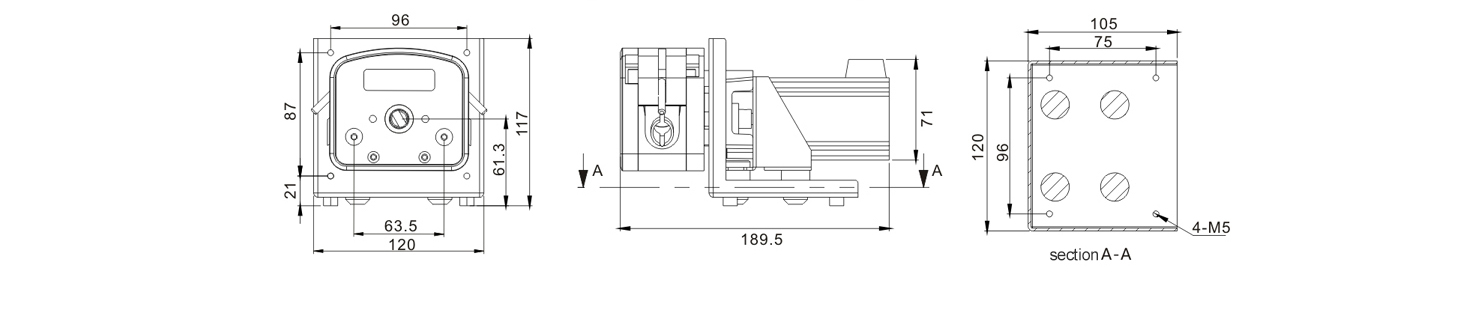

Dimension（Unit：mm）
