OEM-JT403/JT404
    Speed range：≤450 rpm ±10%
    Flow range：≤1710 mL/min
Optional pump head：
4(5)*YZ15(25)15x
Online consultation

Product Introduction

  • Change the tubing easily and rapidly.
  • Two kinds of material housing for option: PPS and PSF.
  • ​High precision and high rigidity.​​
  • 3 rollers and 6 rollers for option.
  • 304/316 stainless steel roller material resists corrosion.

Technical Parameter

Model No. OEM-JT403, OEM-JT404
Pump head 4*YZ15(25)15x, 5*YZ15(25)15x
Motor type AC speed regulating motor
Voltage AC110V/220V
Power consumption ​60 W
Motor size ​Φ90 mm
Speed(rpm) ​450 rpm​
Speed error ≤±10%
Dimension (LWH) ​OEM-JT403: 480.8 * 110 * 137 mm, ​OEM-JT404: 534.6 * 110 * 137 mm
Relative humidity <80%
Working temperature ​0-40℃​​

Flow Range

Model No. Tubing ID×Wall thickness
(mm)		 mL/rpm (0.1-600rpm)
Flow rate
(mL/min)		 Tubing max pressure Mpa Material & Weight(kg)
Intermittent Continous PSF PPS
YZ1515x 13# 0.8×1.6 0.07 0.07-42 0.27 0.17

0.40
（three rollers）



0.44
（six rollers）

0.46
（three rollers）



0.50
（six rollers）
14# 1.6×1.6 0.27 0.27-162
19# 2.4×1.6 0.55 0.055-330
16# 3.1×1.6 0.82 0.082-492
25# 4.8×1.6 1.7 0.17-1020 0.24 0.14
17# 6.4×1.6 2.9 0.29-1740 0.14 0.10
18# 7.9×1.6 3.8 0.38-2280 0.10 0.07
YZ2515x 15# 4.8×2.4 1.7 0.17-1020 0.27 0.17 0.40
（three rollers）		 0.46
（three rollers）
24# 6.4×2.4 2.9 0.29-1740

Installation Steps

Application Cases

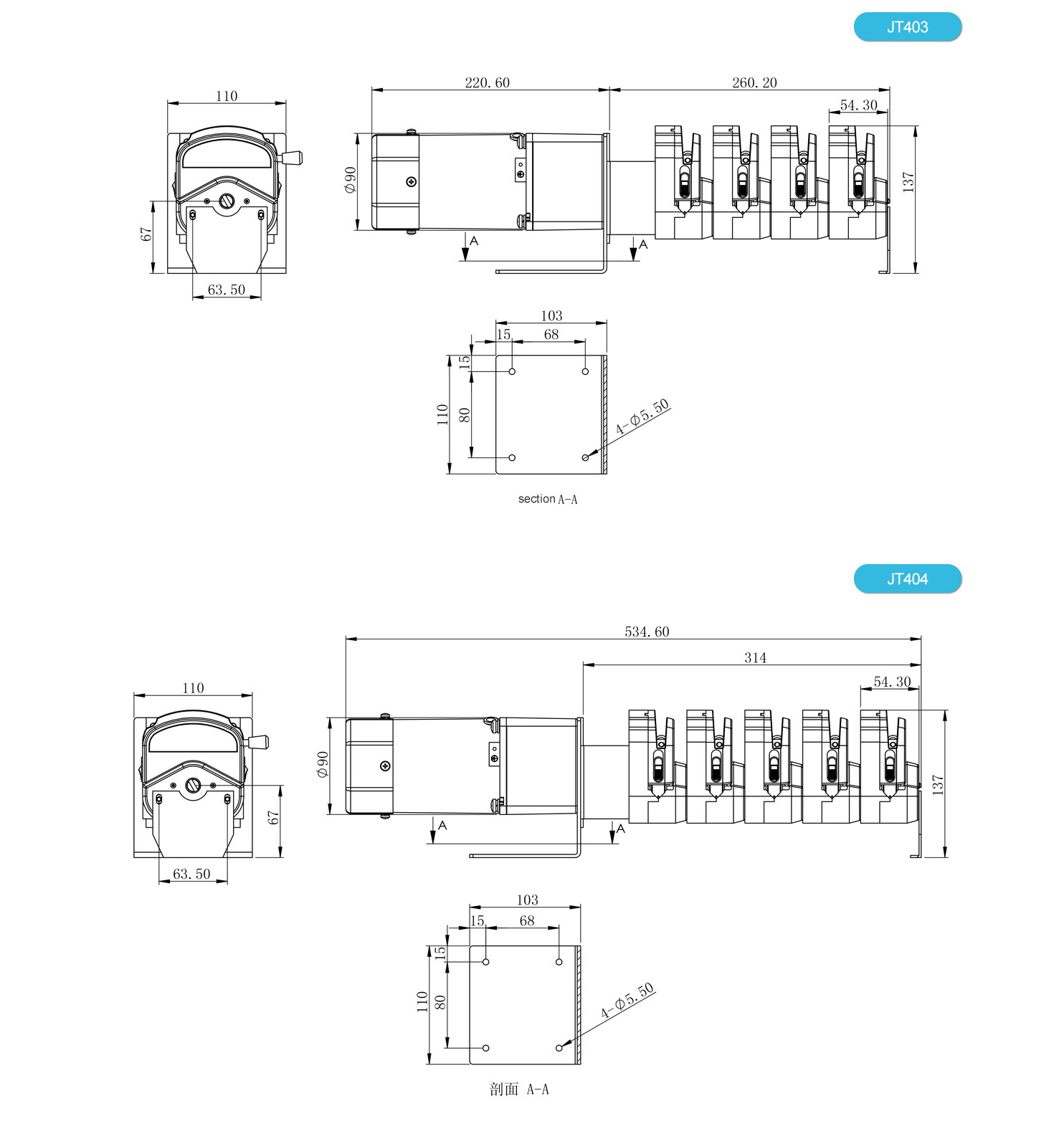

Dimension（Unit：mm）
