- Simple appearance, compact structure, easy installation.
- PES material, good rigidity, high precision.
- Transparent protective cover, easy to observe the working status of pump head and tubing.
- Can use different motor drives, including stepper motor, DC motor and AC motor.

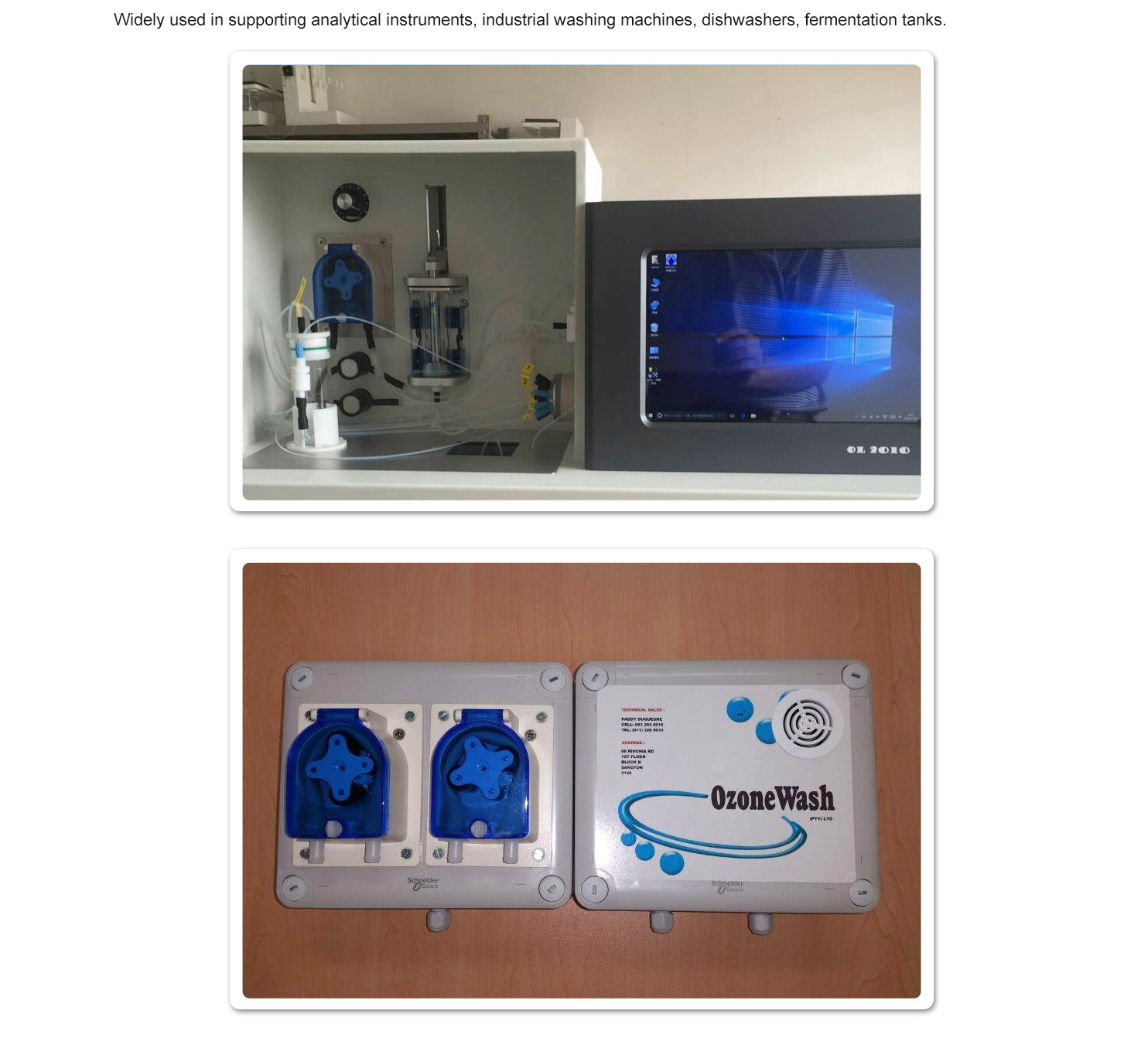

- Embedded design, can be used in different equipment and instruments.
| Model | Housing Material | Tubing | Speed range(rpm) | Flow rate(mL/min) | Weight(kg) | ||
| Body | Protective Cover | Tubing size | ID×Wall thickness(mm) | ||||
| UD15 | PSF | Transparent PC | 16# | 3.1×1.6 | 0.1-350 | 0.08-280 | 0.12 |
| 25# | 4.8×1.6 | 0.16-580 | |||||
| 17# | 6.4×1.6 | 0.26-930 | |||||
| Model No. | Motor Type | Power Supply | Motor Speed(rpm±10%) | Flow Rate(mL/min) |
| OEM-UXZ03 | Φ37 DC planetary gear motor | DC12V | 150 | ≤398 |
| OEM-UXZ06 | 350 | ≤930 | ||
| OEM-UXZ13 | DC24V | 150 | ≤398 | |
| OEM-UXZ16 | 350 | ≤930 |
