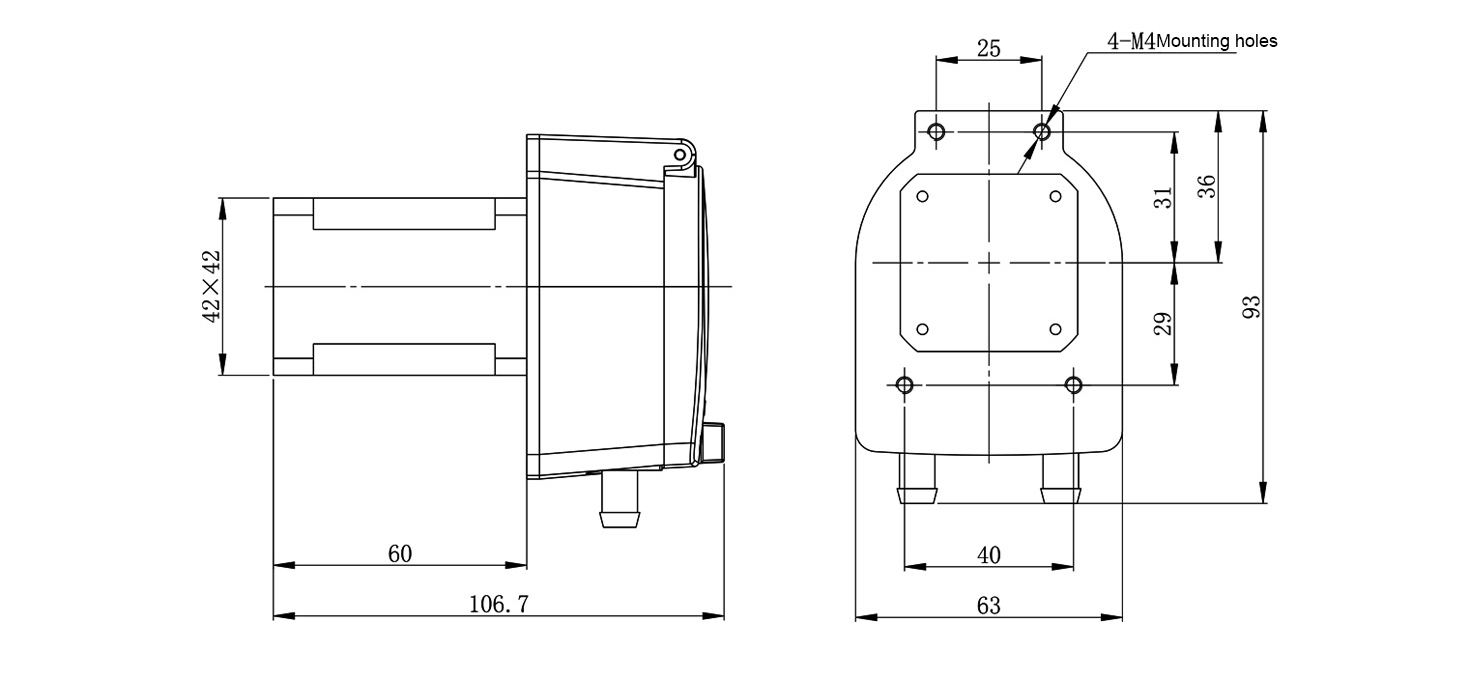

- Dimension
- Simple appearance, compact structure, easy installation.
- PES material, good rigidity, high precision.
- Transparent protective cover, easy to observe the working status of pump head and tubing.
- Can use different motor drives, including stepper motor, DC motor and AC motor.
- Embedded design, can be used in different equipment and instruments.
| Model No. |
OEM-UB01 |
| Speed range |
0.1-350 rpm |
| Flow rate range |
0.08-930 mL/min |
| Motor type |
42 stepper motor |
| Motor phase number |
2 |
| Motor step angle |
1.8° |
| Motor phase voltage |
2.2V |
| Motor phase current |
1.0A |
| Working environment |
0-40℃, 80% RH |
| Model |
Housing Material |
Tubing |
Speed range(rpm) |
Flow rate(mL/min) |
Weight(kg) |
| Body |
Protective Cover |
Tubing size |
ID×Wall thickness(mm) |
| UD15 |
PSF |
Transparent PC |
16# |
3.1×1.6 |
0.1-350 |
0.08-280 |
0.12 |
| 25# |
4.8×1.6 |
0.16-580 |
| 17# |
6.4×1.6 |
0.26-930 |
