Safe explosion proof, suitable for sites where have electric hidden danger.
Stepless speed regulation, reversible.
Stable flow rate, high torque and low noise, suitable for various pump head and tubing.
Can mount 2 pcs pump heads to increase flow rate. Reduce pulsation, more stable to transfer liguid.
Big flow rate design, speed range is 180-600 rpm.
Technical Parameter
Flow rate
126.6-3600mL/min
Speed range
60-600rpm
Speed control
Inverter speed regulation
Display
Frequency converter displays operating frequency
Speed regulation resolution
0.01Hz
External control
Passive switch signal control start/stop, motor running state output and 4-20mA speed control
Communication function
RS485 RTU
Voltage
AC 3 phase 380V /AC 3 phase 220V
Power
0.37kW
Condition environment
0-40°C, <80%RH
Explosion-proof grade
ExdIBT4
lP rate
IP 55
Pump Head Parameter
Drive
Speed(rpm)
Pump Head
Tubing Size
Flow Rate(mL/min)
EXP600-A-IV-1
60-600
DZ25-3L
15#, 24#, 35#, 36#
126.6-3600

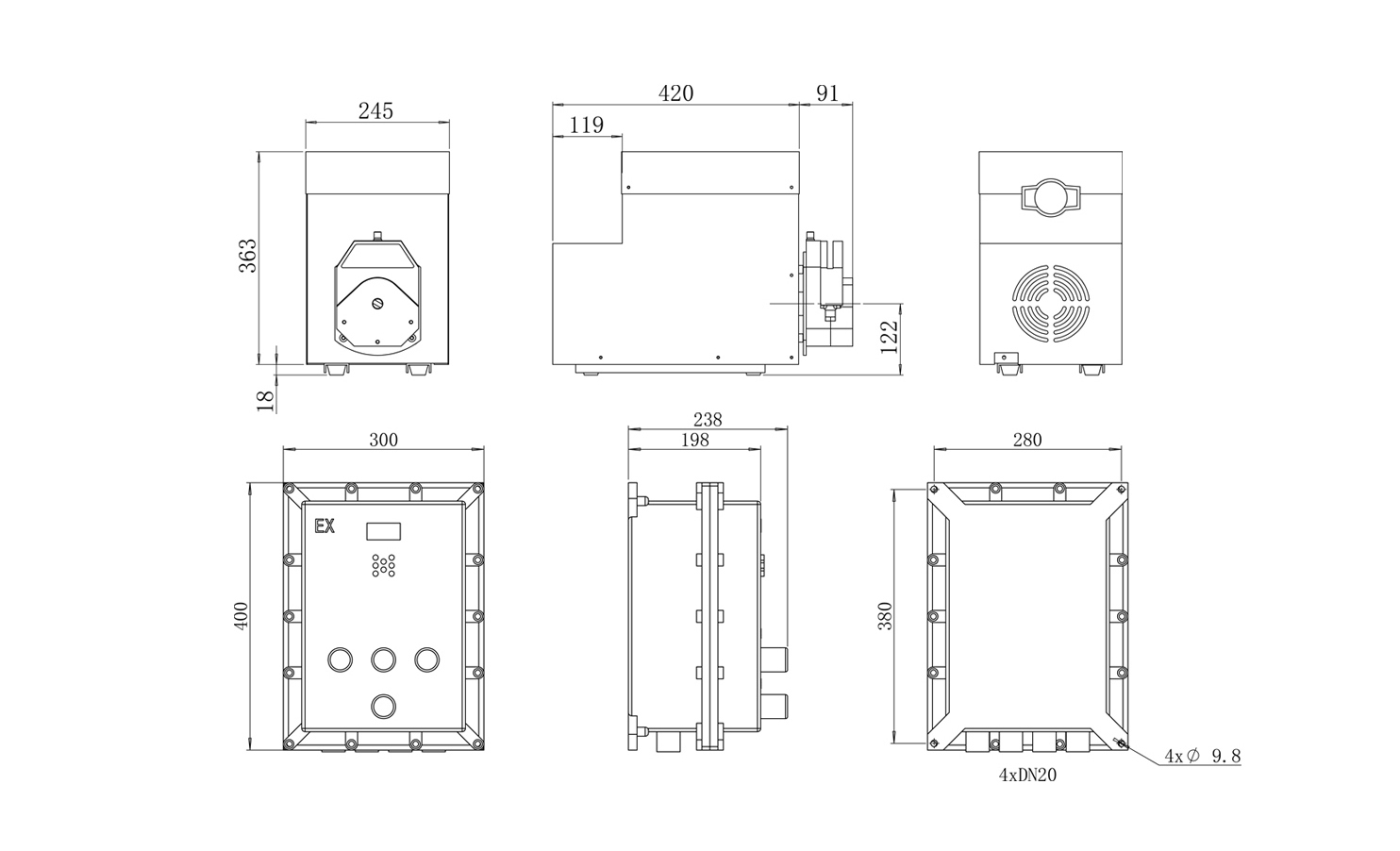

Dimension（Unit：mm）
