- 3 digital LED display motor speed, mechanical keypad control, multiple external control for selection.
- Timing function, the time range of 0.5 seconds -999 seconds can be used as a simple dispensing.
- Timing function, can be used for simple dispense. Has both RS232 and RS485 communication mode.
- Streamlined body design, with ABS Engineering Plastic Shell and add UV Spray Coating.
- Full speed button: with full filling and emptying function.
|
Drive
|
LabM1-III
|
LabM3-III
|
LabM6-III
|
|
Speed range
|
0.1-150rpm
|
0.1-350rpm
|
0.1-600rpm
|
|
Flow rate range
|
0.0079-756.99mL/min
|
0.0079-1766.31mL/min
|
0.0079-3027.97mL/min
|
| Speed resolution | 0.1 rpm | ||
| Testing time range | 0.5s-999s | ||
| Outlet pressure | 0.1Mpa (0.8-1.0mm wall thickness tubing) 0.1-0.27Mpa ( 1.6-2.4mm wall thickness tubing) | ||
| Back suction angle | 0-360° | ||
| Display | 3 digital LED | ||

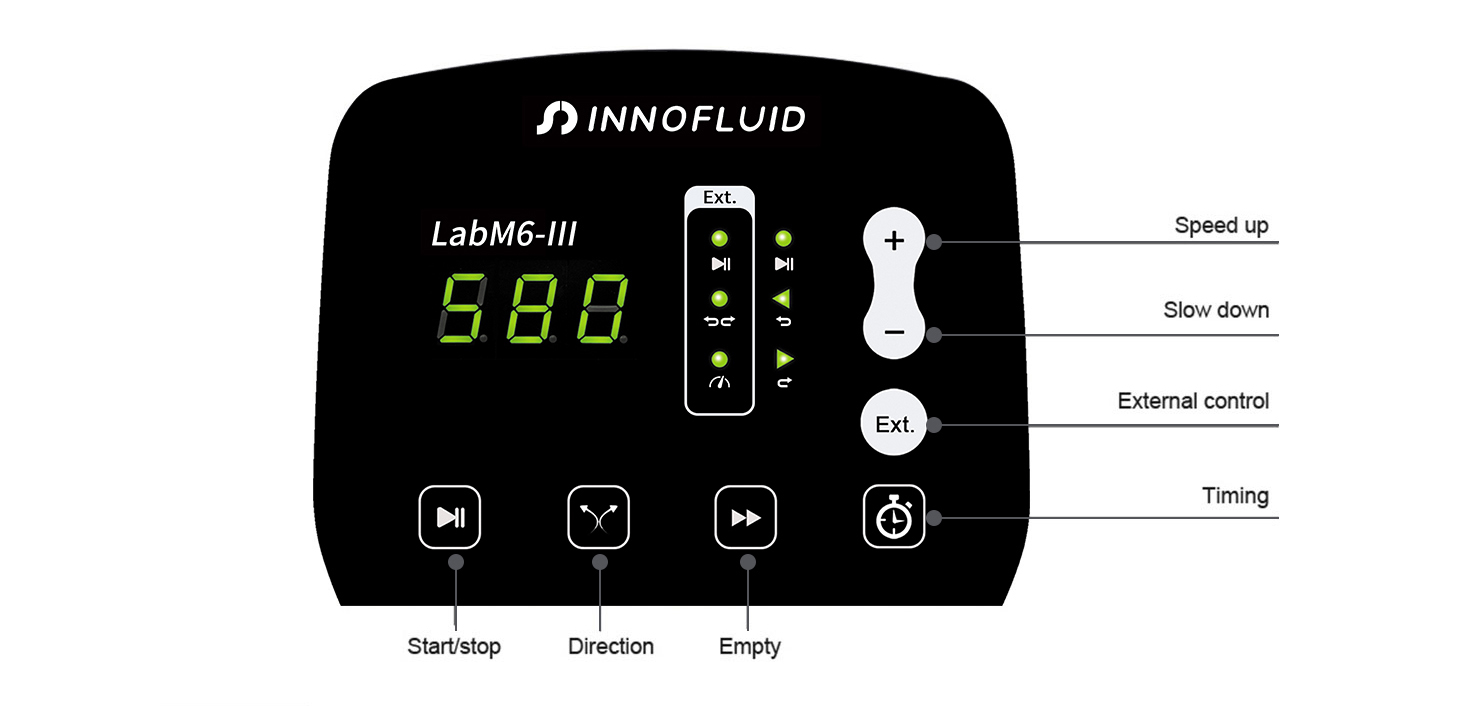

| Control method | Mechanical keypad | ||
| Keypad lifetime | 300,000 times | ||
| External control speed signa | 0-5V,0-10V,4-20mA for option | ||
| Start/stop, direction signal | Passive switch signal, such as foot pedal switch Active switch signal,default 24V | ||
| Communication interface | RS232/RS485 support MODBUS protocol (RTU mode) | ||
| Power supply | AC 220V±10%,50Hz/60Hz(standard),AC 110V±10%, 50Hz/60Hz (optional) | ||
| Drive dimension | 323x157x237(LxWxH) | ||
| Drive weight | 4.40kg | ||
| Power consumption | <80W | ||
| Environment temperature | 0-40℃ | ||
| Relative humidity | <80% | ||
| IP rate | IP31 | ||
|
Pump Head
|
Tubing | lDxWall thickness(mm) | Flow Rate(L/min) (3 rollers, 0.1-600rpm) |
Flow Rate(L/min) (4 rollers, 0.1-600rpm) |
Tubing Max.Pressure(Mpa) | Weight(kg) | |
| Intermittent | Continuous | ||||||
| KD15 | 13# | 0.8x1.6 | 0.0083-50.3 | 0.0079-47.37 | 0.27 | 0.17 | 0.37 |
| 14# | 1.6x1.6 | 0.0281-168.4 | 0.0267-160.37 | ||||
| 19# | 2.4x1.6 | 0.0613-367.97 | 0.0544-326.13 | ||||
| 16# | 3.2x1.6 | 0.1006-603.5 | 0.0942-565.47 | ||||
| 25# | 4.8x1.6 | 0.2243-1345.83 | 0.2103-1262 | 0.24 | 0.14 | ||
| 17# | 6.4x1.6 | 0.3297-1978.1 | 0.2915-1748.93 | 0.14 | 0.10 | ||
| 18# | 7.9x1.6 | 0.5047-3027.97 | 0.4483-2690 | 0.10 | 0.07 | ||
| KD25 | 15# | 4.8x2.4 | 0.2513-1507.6 | 0.1979-1187.55 | 0.27 | 0.17 | |
| 24# | 6.4x2.4 | 0.3912-2346.95 | 0.2909-1745.5 | ||||
Operation Demonstration
Timing Function Demonstration
