ExD-300-30L/DZ45
    Speed range:0.1-300rpm
    Flow range:0.0019-28.15L/min
Optional pump head:
DZ45
Online consultation
Download

Product Introduction

  • Integrated casting body.
  • IP66 designed for industrial environment.
  • Three-proof buttons and knob system: explosion-proof dustproof, waterproof.
  • Intelligent operation system.
  • Passed EMC test excellent anti-electromagnetic interference capability.
  • AC servo motor control system.
  • Laser engraving logo pattern to eliminate the hidden danger of static electricity of traditional plastic label.

Technical Parameter

Marking Ex II2G Ex db lIC T4 Gb; Ex II2D Ex tb lIC T130°C
Standard ENIEC 60079-0:2018+A11:2024; ENIEC60079-1:2014+A11:2024;EN IEC 60079-31:2018
Housing material Aluminum Alloy
Speed range 0.1-300rpm
Speed resolution 0.1rpm
Display 4.3 inch-lndustrial grade-True color LCD screen
Control Mechanical button, explosion proof knob, external control signal and communication
Working mode Flow rate mode, Dispensing mode
Flow rate mode Continuous transferring according to the set flow rate or motor speed
Dispensing mode Set the dispensing volume, dispensing time, pause time and repeat numbers
Dispensing volume 0.1mL-9999L
Dispensing time 0.1sec-9999hour
Pause time 0.5sec-9999hour
Repeat number 1-9999 times,0 represent unlimited
Calibration function Input actual volume and calibrate automatically
Back suction angle 0-360°
Communication RS485
Communication protocol Modbus protocol(RTU mode)
External control speed signal 0-5V,0-10V,4-20mA optional
External control signal input Active switch signal (5-24V)control start/stop, direction and full speed;Passive switch signal control start/stop.
External control signal output Open collector output working status
Drive dimension(LxWxH) 458x285x335mm
Power supply AC110-220V±10%,50Hz/60Hz
Rated power 300W
Relative humidity <90%
Condition temperature 0-40°C
IP rate IP66
Drive weight 30.1kg

Pump Head Parameter

Drive Pump Head Housing Material Tube Clamp/
Connector Material
Tubing Speed(rpm) L/r Flow Rate
(L/min)
Weight(kg)
Size lDxWall Thickness(mm)
ExD-300-30L DZ45 Aluminumalloy Aluminumalloy 193# 9.6x4.8 0.1-300 0.019 0.0019-5.66 10
88# 12.7x4.8 0.035 0.0035-10.5
189# 15.9x4.8 0.047 0.0047-13.98
191# 19.4x4.8 0.063 0.0063-18.78
92# 25.4x4.8 0.1-270 0.104 0.0104-28.15

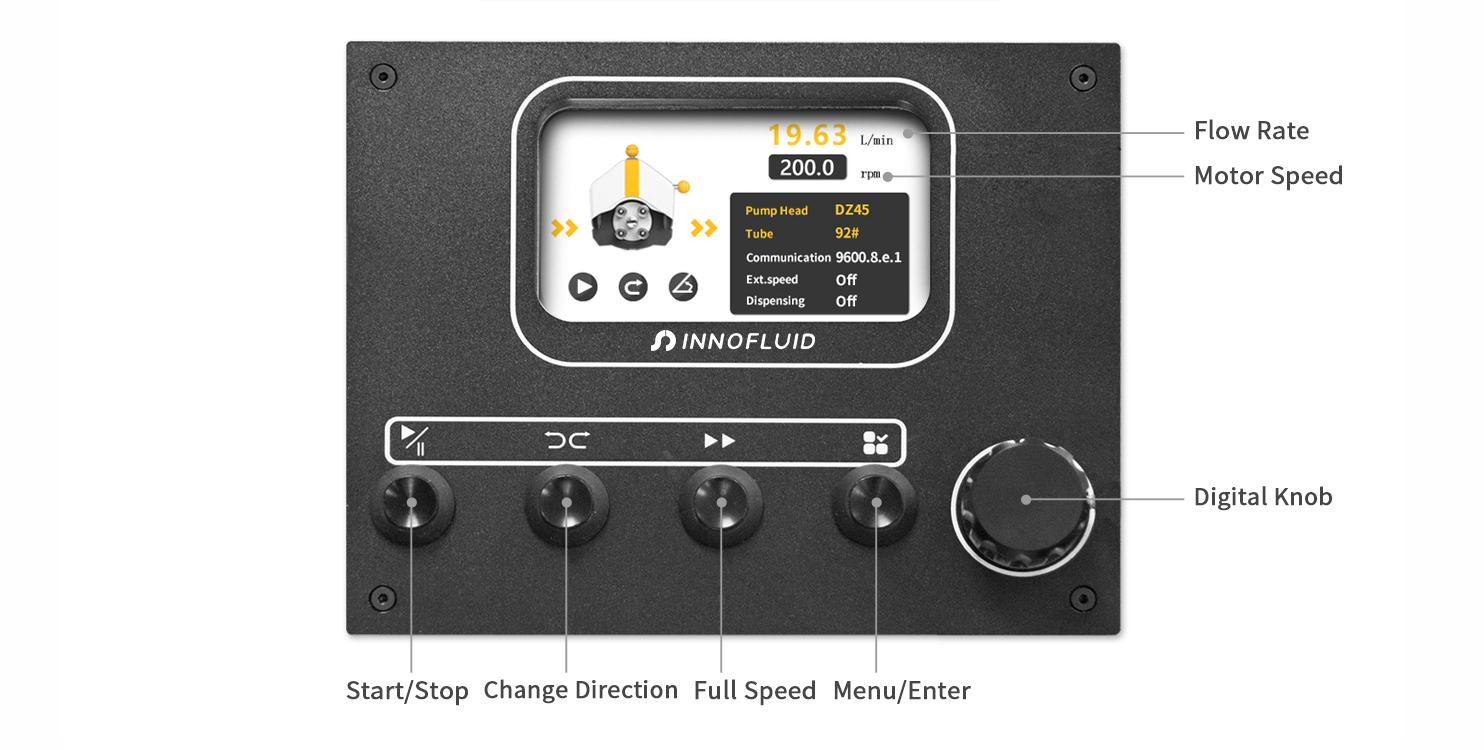

Intelligent operation system

Application

  Precise dripping of chemical drug in explosion-proof production workshop
In the titration process of chemical drug production, customers have been using liquid level tanks to drip acetone or ethanol solutions.  This method is less accurate. Because this process is used to  transport ethanol and acetone, the equipment is required to be  explosion-proof and corrosion-resistant. Using ExD-600-12L  explosion  proof peristaltic pump  to achieve precise control and  accuracy of ±1%.

  95% ethanol sub-package production
The customer has been using the explosion proof motor  and piston pump to dispensing ethanol. When producing  products of different specifications, complicated equipment adjustment work is required, which takes about 2-3 hours. The customer's equipment  transformation replaces the sub-package pump with ExD-600-6L. For each replacement, it only needs to adjust the parameters on the control panel of the pump, and it only takes 5 minutes at most.

  Catalytic validation equipment and simulation pilot production equipment
validation device sampling for chemical enterprises
In the process of validating catalysts and simulating oil production, chemical enterprises need sampling pumps for accurate injection.  A lot of electromagnetic interference signals will be generated in the field cause of multiple devices running in a centralized manner.  And many similar products in the market cannot meet the demand.   ExD-600-12L peristaltic pump achieves accurate sampling through  good anti-interference ability on site.

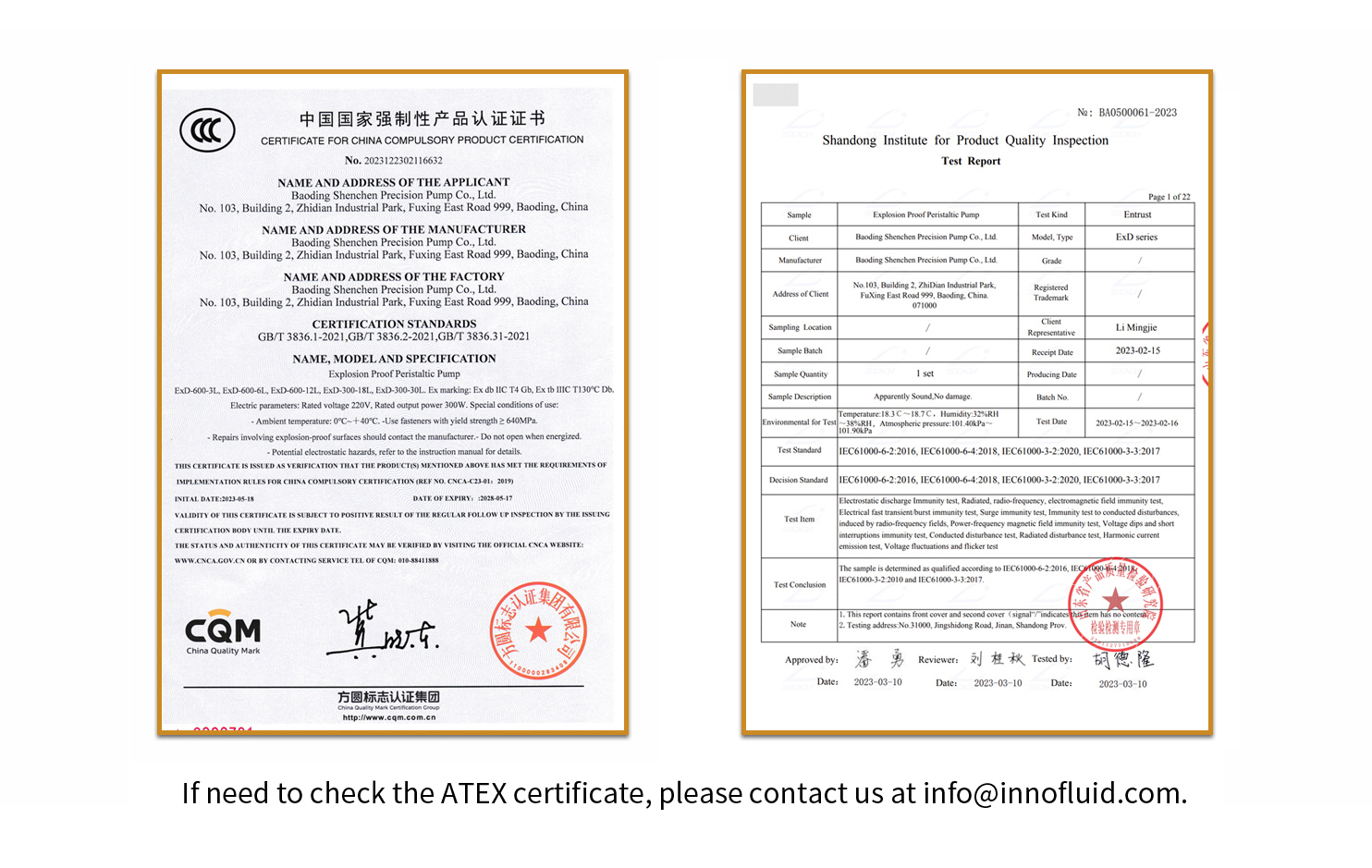

Certificates

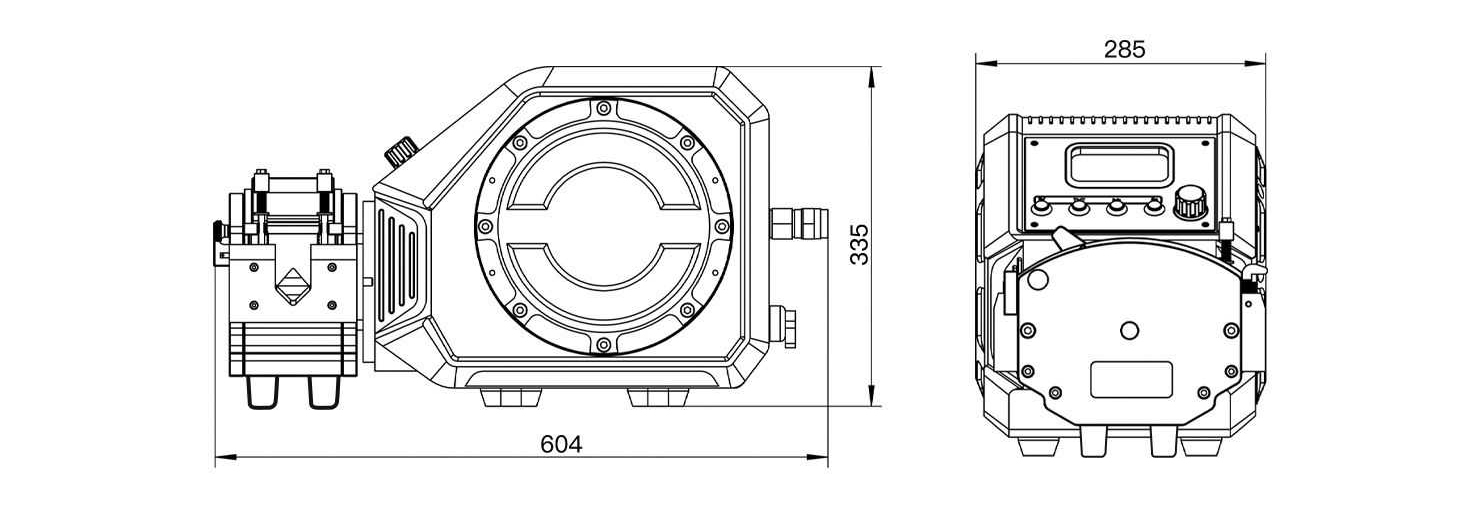

Dimension(Unit:mm)
